FCST-VBK
FCST
FCST-VBK
5000
Aperçu du produit
Pour une étanchéité facile aux gaz et à l'eau des câbles dans les microconduits. Le mini joint micro-conduit divisible FCST-VBK est facile à monter sur les nouvelles installations et les installations existantes. Grâce à cette conception astucieuse, le déplacement du joint sur la fibre appartient désormais au passé. Grâce à sa conception compacte, ce joint peut être installé dans toutes les situations, même dans les endroits difficiles d'accès.
Avantages du produit
Conception mince.
Installation facile.
Convient pour le raccord rétro.
Etanchéité au gaz et à l'eau jusqu'à 0,5 bar.
Autres versions disponibles sur demande.
Pas besoin de faire glisser le joint sur la fibre de verre pour l'installation.
Spécifications du produit
| Construction | Description |
| Dimension | 26 * Φ13,5 mm/26 * Φ14,5 mm |
| Matériel | Corps : PA Joint : Caoutchouc de silicium |
| Scellage | jusqu'à 0,5 bar |

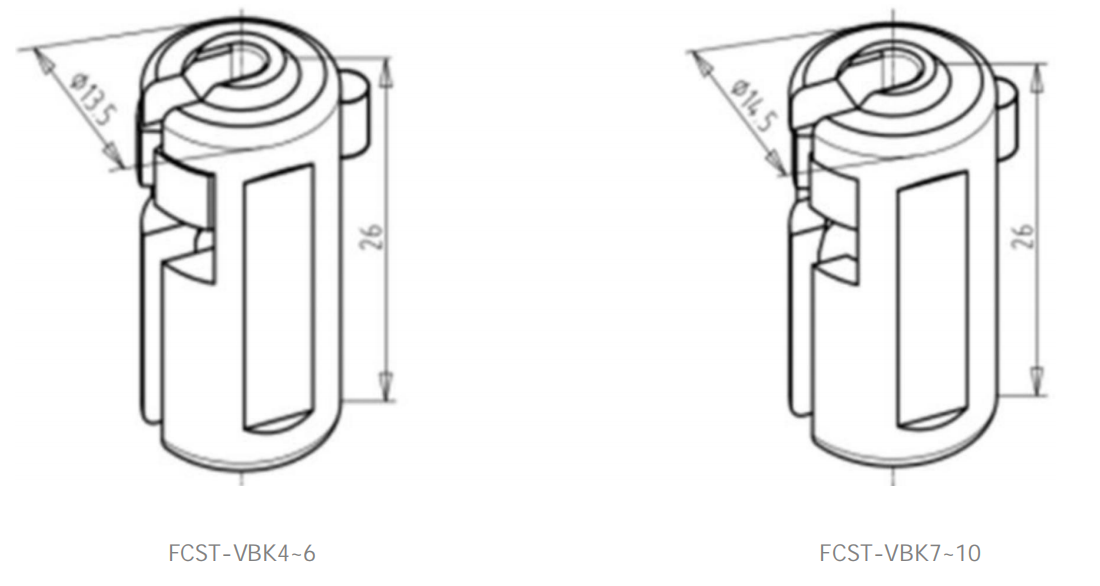

Taille du produit
Commande de formation
| UGS | Conduit OD (mm) | Plage de diamètre extérieur du câble (mm) |
FCST-VBK4/1.2 | 4 | 0,9 ~ 1,2 |
| FCST-VBK4/1.5 | 4 | 1,3 ~ 1,5 |
| FCST-VBK4/1.8 | 4 | 1,6 ~ 1,8 |
| FCST-VBK4/2.2 | 4 | 1,9 ~ 2,2 |
| FCST-VBK4/2.5 | 4 | 2,25 ~ 2,5 |
| FCST-VBK4/5.0 | 4 | 3,5 ~ 5,0 |
| FCST-VBK5/1.2 | 5 | 0,9 ~ 1,2 |
| FCST-VBK5/1.5 | 5 | 1,3 ~ 1,5 |
| FCST-VBK5/1.8 | 5 | 1,6 ~ 1,8 |
| FCST-VBK5/2.2 | 5 | 1,9 ~ 2,2 |
| FCST-VBK5/2.5 | 5 | 2,25 ~ 2,5 |
| FCST-VBK5/5.0 | 5 | 3,5 ~ 5,0 |
| FCST-VBK6/1.2 | 6 | 0,9 ~ 1,2 |
| FCST-VBK6/1.5 | 6 | 1,3 ~ 1,5 |
| FCST-VBK6/1.8 | 6 | 1,6 ~ 1,8 |
| FCST-VBK6/2.2 | 6 | 1,9 ~ 2,2 |
| FCST-VBK6/2.5 | 6 | 2,25 ~ 2,5 |
| FCST-VBK6/5.0 | 6 | 3,5 ~ 5,0 |
FCST-VBK7/1.2 | 7 | 0,9 ~ 1,2 |
| FCST-VBK7/1.5 | 7 | 1,3 ~ 1,5 |
| FCST-VBK7/1.8 | 7 | 1,6 ~ 1,8 |
| FCST-VBK7/2.2 | 7 | 1,9 ~ 2,2 |
| FCST-VBK7/2.5 | 7 | 2,25 ~ 2,5 |
| FCST-VBK7/5.0 | 7 | 3,5 ~ 5,0 |
| FCST-VBK8/1.2 | 8 | 0,9 ~ 1,2 |
| FCST-VBK8/1.5 | 8 | 1,3 ~ 1,5 |
| FCST-VBK8/1.8 | 8 | 1,6 ~ 1,8 |
| FCST-VBK8/2.2 | 8 | 1,9 ~ 2,2 |
| FCST-VBK8/2.5 | 8 | 2,25 ~ 2,5 |
| FCST-VBK8/5.0 | 8 | 3,5 ~ 5,0 |
| FCST-VBK10/1.2 | 10 | 0,9 ~ 1,2 |
| FCST-VBK10/1.5 | 10 | 1,3 ~ 1,5 |
| FCST-VBK10/1.8 | 10 | 1,6 ~ 1,8 |
| FCST-VBK10/2.2 | 10 | 1,9 ~ 2,2 |
| FCST-VBK10/2.5 | 10 | 2,25 ~ 2,5 |
| FCST-VBK10/3.1 | 10 | 2,8 ~ 3,1 |
| FCST-VBK10/3.5 | 10 | 3,2 ~ 3,5 |

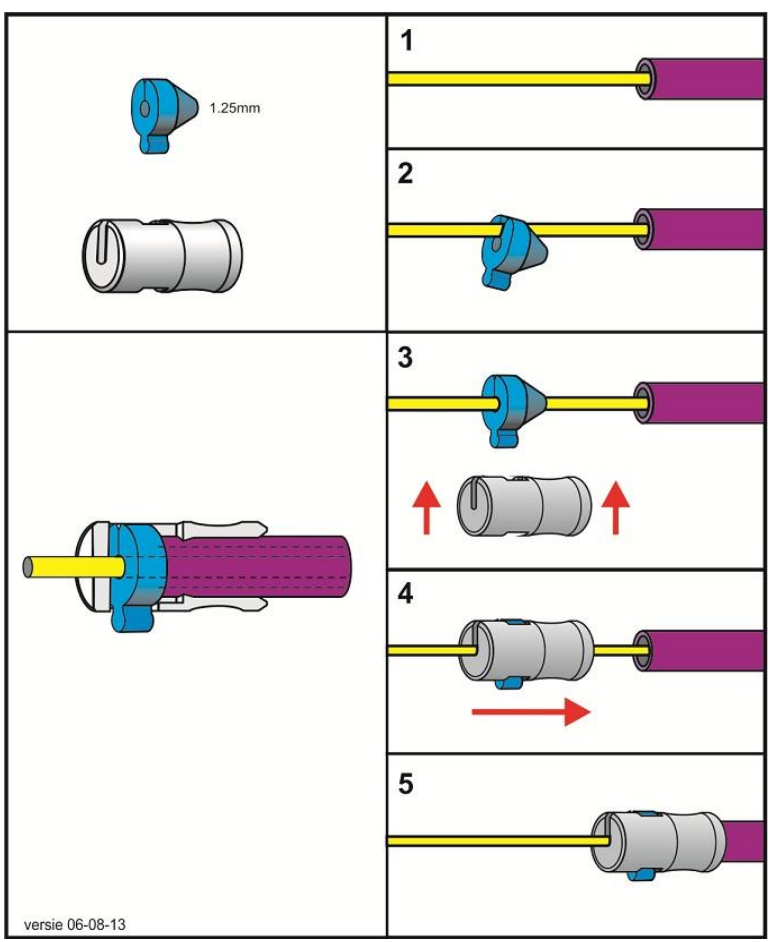

Guide d' installation
