FCST080612
FCST
FCST080612
Product Overview
FCST080612 series optical time domain reflectometer is a new generation of portable and intelligent measuring instrument designed by FCST communication technology for testing optical fiber communication system .Adopt 5.8 inch color touch screen,button/touch dual operation,integration of eight major functional modules,multi-functional integration to help customers effectively solve the field test and maintenance.The highest 45dB dynamic range,can penetrate optical splitter,effective PON network testing;Intelligent power saving management,20 hours long standby,efficient protection of test dimension continuous.The design concept of multi-functional integration,precision testing and convenient operation makes the field test operation simple.
Product Advantages
l Automatic & manual test function;
l Touch screen and keyboard operation;
l Built-in visible fault locator (VFL) function;
l Support Bellcore GR196 and SR-4731 file format;
l Advanced antireflection LCD, clear display interface in field;
l Automatic detection of the communication light signal;
l 1.6m ultra-short event dead zone, easy to test optical fiber jumper;
l WinCE window operation system, Chinese/ English operation interface;
l Intelligent indication of battery capacity, alarm when the battery is running out;
l The most advanced technology of double color & material integrative mould, strong and firm;
l The OTDR optical output connectors are exchangeable, so it is more convenient to clean the end surface;
l Large capacity lithium battery to support over 10 hours of operation, suitable for long-time filed work;
l Two USB interfaces: can connect to the external U disk, or communicate with PC through SyncActive software;
Product Specifications
Construction | Description | |||||||||||||
Product Name | FCST080612 SM Multi-Function OTDR | |||||||||||||
Model | S1 | S2 | S3 | S4 | T1 | T2 | T3 | T4 | T5 | T6 | F1 | M1 | SM1 | |
Max.Dynamic Range(dB) | 35/33 | 38/36 | 42/40 | 45/43 | 32/30/30 | 37/35/35 | 32/30/30 | 37/35/35 | 32/30/30 | 37/35/35 | 37/35/35/35 | 26/28 | 26/28/35/33 | |
Wave-length | 1310/1550nm | 1310/1490/1550nm | 1310/1550/1625nm | 1310/1550/1650nm | 1310/1490/1550/1625nm | 850/1300nm | 850/1300/1310/1550nm | |||||||
Event Dead Zone | 1m | 0.8m | 1m | |||||||||||
Type | SM | MM | SM/MM | |||||||||||
Display | 5.6 inch color LCD with touch screen | |||||||||||||
Attenuation Dead Zone | 6m | |||||||||||||
Test Range | 500m/1km/2km/4km/8km/16km/32km/64km/128km/256km | |||||||||||||
Pulse Width | 3ns/5ns/10ns/30ns/50ns/80ns/160ns/320ns/500ns/800ns/1000ns/3000ns/5000ns/8000ns/10000ns/20000ns | |||||||||||||
Ranging accuracy | ± （0.75m+ Sample interval +0.005％×Test distance） | |||||||||||||
Loss accuracy | ±0.05dB/dB | |||||||||||||
Sample Points | 16k~256k | |||||||||||||
Sample Resolution | 0.05m~16m | |||||||||||||
Reflection Accuracy | ±3dB | |||||||||||||
File Format | SOR Standard File Format | |||||||||||||
Loss Analysis | 4-point method /5-point method | |||||||||||||
Laser Safety Level | Class Ⅱ | |||||||||||||
Refresh Rate | 3Hz (Typ.) | |||||||||||||
Data Storage | Internal storage：100M （≤3000 curves），Scalable to 4G or 8G (optional)；External storage：4G bit | |||||||||||||
Output Interface | FC/UPC （Interchangeable SC 、ST） | |||||||||||||
Data Interface | USB 、Mini-USB 、10M/100M Ethernet Port | |||||||||||||
Product Applications
It is mainly used to measure the length.Loss and connection quality of all kinds of optical fibers and cables,and can be widely used in engineering construction,line maintenance and testing ,emergency repair,and the development and production of optical fibers and cables.
Product Structure
Packing Information
Parts List
Product Advantages

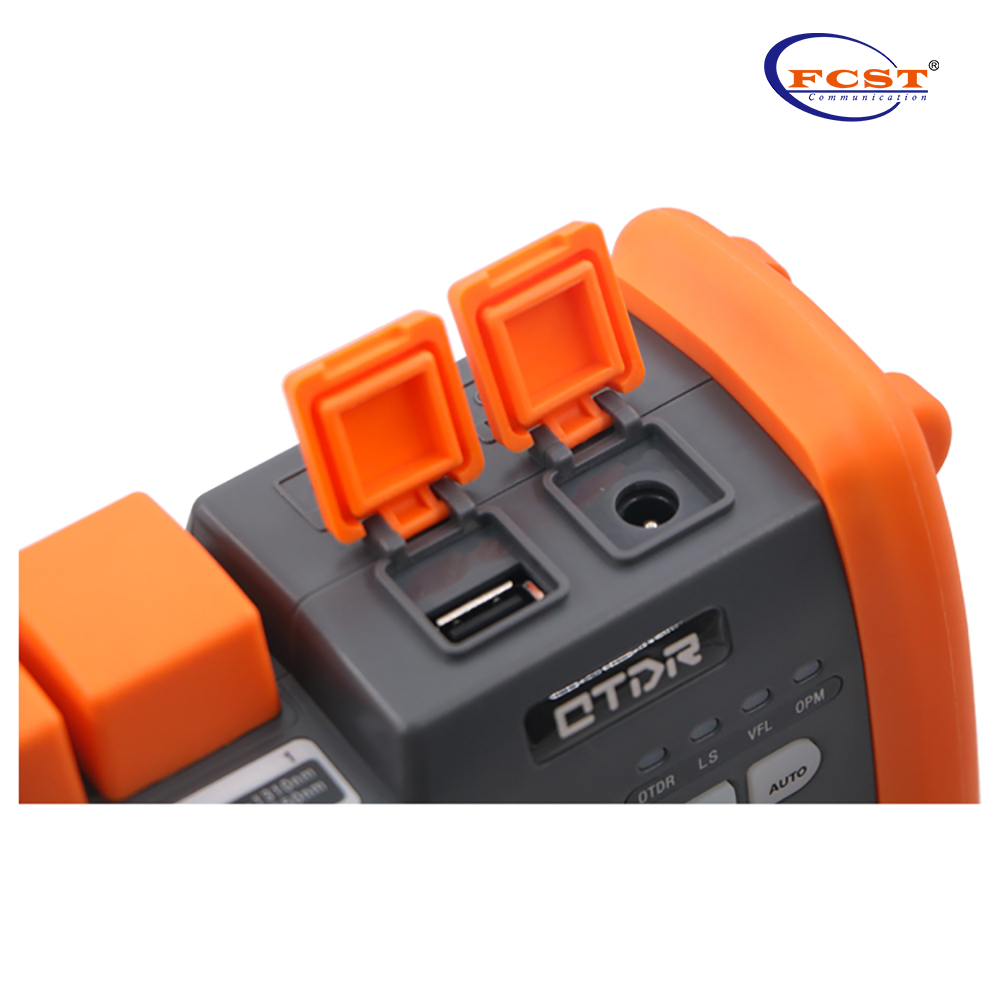

Name and function of parts(Front Panel、Top Panel、Bottom Panel)
Display（Instrument main interface）
5.7-inch color touch screen. The touch key + key double operation mode, borrowed from the tablet design, is fast and convenient.
Designed to provide efficiency. Integrate OTDR/light source/optical power meter, VFL multi-function in one, stable light source function 1310/1550nm, optical power meter test function, VFL.
With abundant external interfaces. Remote control can be realized through the Ethernet connector, and data communication between external U disk, printer and PC can also be realized through two unused USD interfaces. It supports batch processing of files, can print four documents at a time, and supports PDF format printing.
Product Application
FCST080612 OTDR is a high-performance, multi-function test instrument designed by FCST for FTTx networks. It has excellent test performance and can support various test modules such as VFL, OPM, and fiber optic microscope (FIP). This product is mainly used to measure the length, transmission loss, connector loss and other physical properties of optical fibers, and is widely used in FTTH networks, local area optical networks, metropolitan area optical networks, PON network construction, deployment, maintenance, certification, and optical communication teaching And scientific research.
