FCST03406
FCST
FCST03406
Product Overview

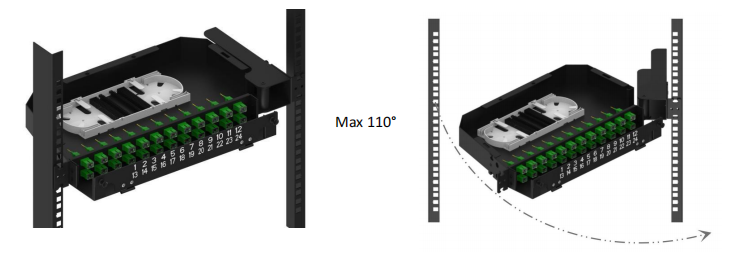

ODF Rotary 1U panel is made of cold rolled steel material . An innovative high density pivot panel designed to accept up to 48 SC simplex footprint adapters. The panel can pivot by up to 110° to allow easy access during installation or rework with no disturbance of the existing cable or fibers.
Product Advantages
l Holds up to 48 SC simplex footprint adapters.
l Accepts loose tube, distribution and pre-terminated cables.
l Designed for 19'' standard Distribution frame.
Product Specifications
Construction | Description |
Mounting Type | Rack 19′′ |
Height Unit | 1U |
Material | Cold colled steel body&bracket , Material Coating: Powder |
Housing Colour | Grey Ral 7035 / Black Ral 9007 |
Application | Indoor IP20 |
Lockable | No |
Dimensions(WxDxH) | 488 x 283 x 44mm |
Net Weight | 2.50 kg |
Opening Type | Right or left pivotal panel |
Access Type | Front access |
Front Cable Management | Front manager with hinged drop down bar |
Cable Entry Direction | Sides |
Rear Cable Management | 6 x cable entries |
Slot Type | SC Simplex /LC Duplex adapters footprint |
Number Of Slots | 48 |
Fiber Capacity | Up to 48 |
Product Application
l Telecommunications subscriber.
l Fiber to the home (FTTH).
l LAN/WAN.
l CATV.
l Indoor Application.

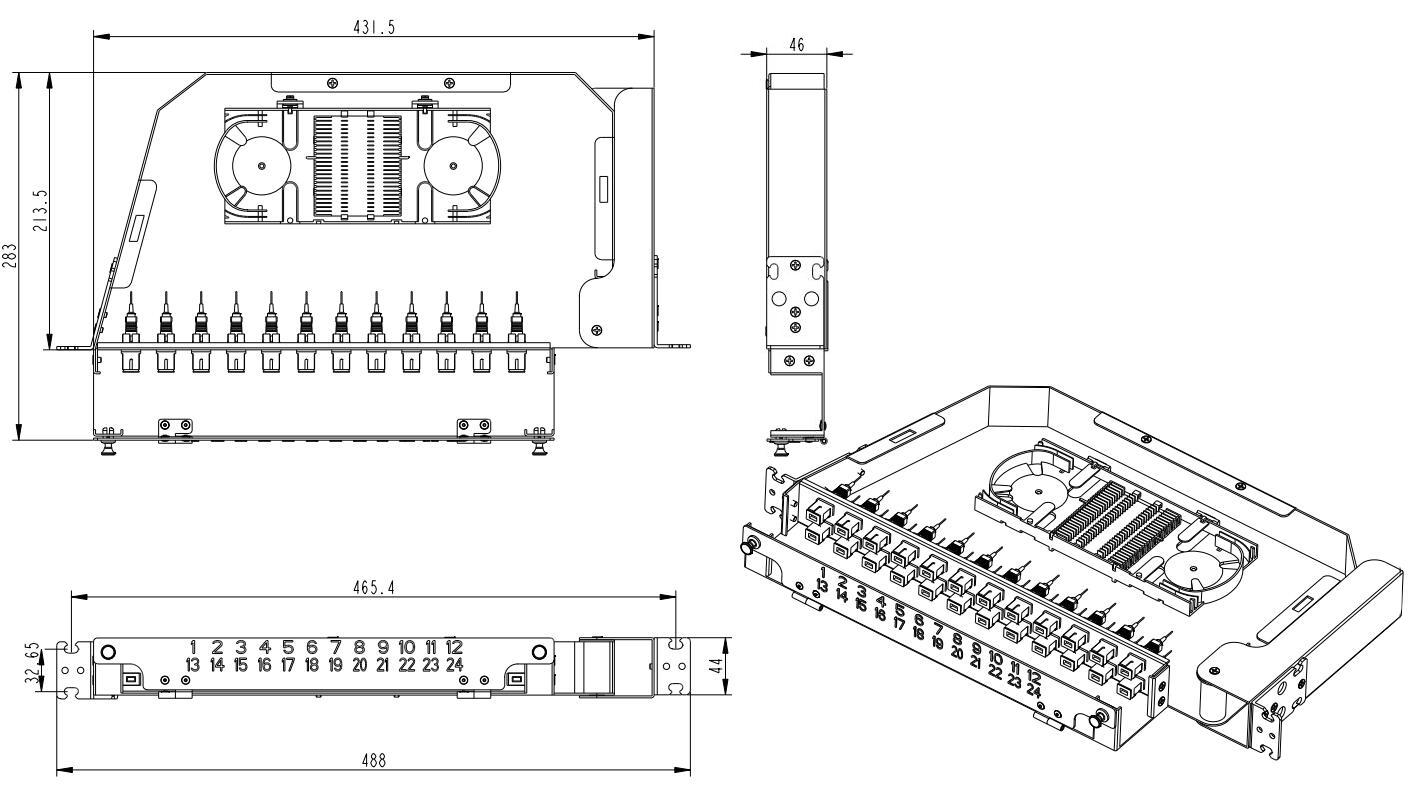

Product Structure（Scale：mm）
Ordering Information
