FCST03404 Type de panneau de panneau de patch à fibre

  • Épisser le plateau à l'intérieur modifiable.
  • Convient pour le ruban et la fibre unique.
  • Taille standard, poids léger et structure raisonnable.
  • La marque avant sur la plaque est facile pour l'identification et le fonctionnement.
État de disponibilité:
Quantité:
  • FCST03404

  • FCST

  • FCST03404

Product Overview

FCST03404 Fiber Patch Panel is a box for protecting the optical cable and pigtail splice in the cable laying. It is mainly used for the straight-through connection and branch connection of the indoor optical cable and the fixing of the cable terminal, and functions as a pigtail storage and protection joint.(Note: The Fiber optical Patch panel is not suitable for outdoor use. If it is used, protective measures should be taken. Special specifications can be customized according to customer requirements.)

Product Advantages

Standard size, light weight and reasonable structure;

Splice tray inside changeable;

Can be used in 19” standard distribution frame;

Suitable for ribbon and single fiber;

Various panel plate to fit different adapter interface;

Front mark on the plate is easy for identification and operation;

Come with fiber optic pigtails and adapters;

120°open Rotary type - Easy for management and operation.

Product Specifications

ITEM NO.

DIMENSION

N.W.

MATERIAL

MAX. CORES

PACKAGE

FCST03404-06SC-A

483*240*44mm

3.5 kgs

Cold Rolled Sheet 1.2mm

6

5 PCS / CTN

FCST03404-12SC-A

483*240*44mm

3.5 kgs

Cold Rolled Sheet 1.2mm

12

5 PCS / CTN

FCST03404-24SC-A

483*240*44mm

3.5 kgs

Cold Rolled Sheet 1.2mm

24

5 PCS / CTN

FCST03404-48SC-A

483*240*44mm

3.5 kgs

Cold Rolled Sheet 1.2mm

48

5 PCS / CTN

Product Application

Telecommunications subscriber loop;

Fiber to the home (FTTH);

LAN/WAN and metro networks;

CATV Networks;

Other applications in Fiber optical systems.

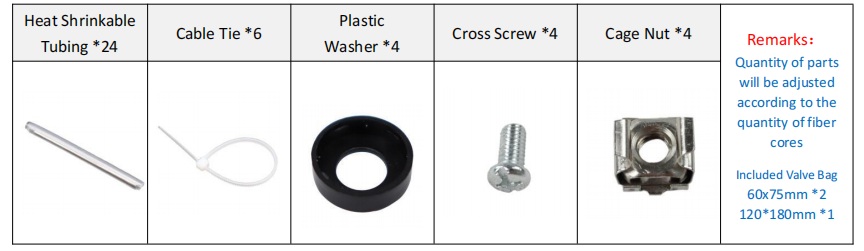

Accessories List

TB259XZ(8ADQ`6AW29

通用图片-1

通用图片-2
