FCST012135
FCST
FCST012135
Product Overview

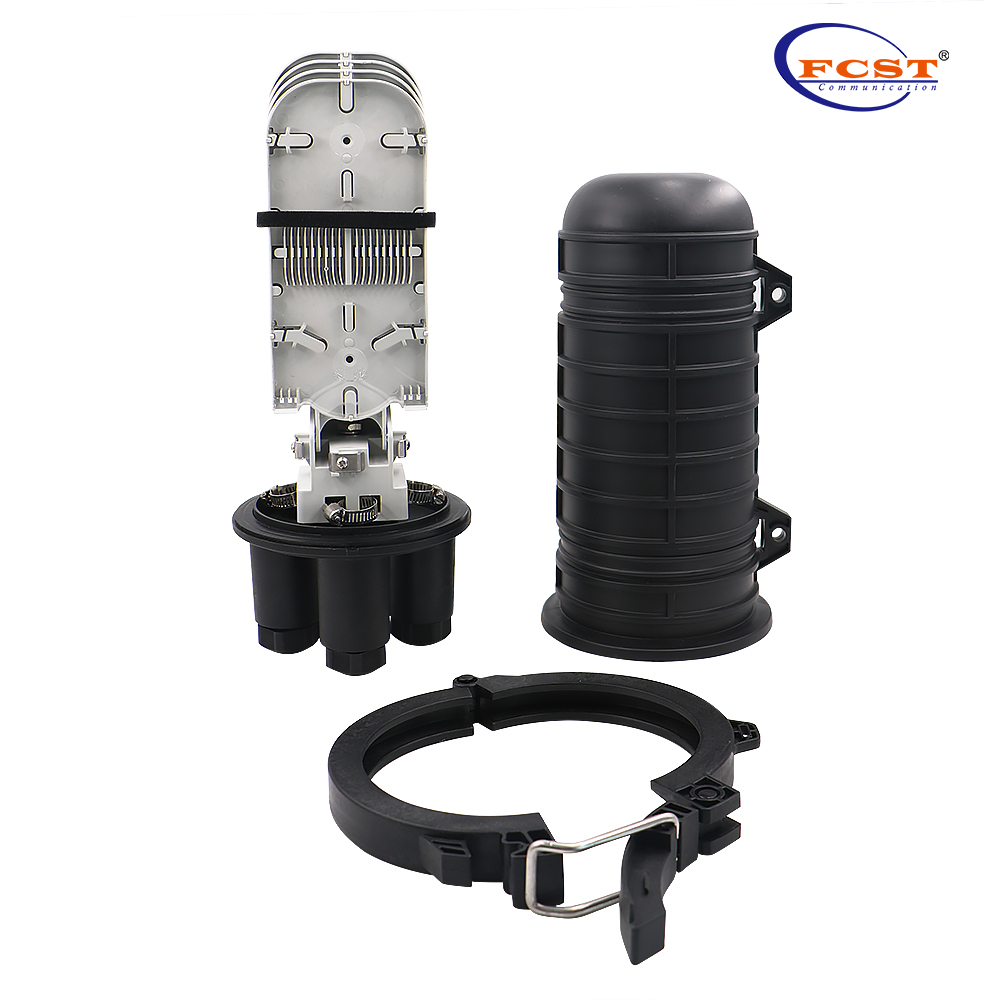

FCST012135 Fiber Optic Splice Closure type of FOSC is designed for connection and protection of fiber cables. FCST012135 provides several different types of capacity for our consumers to choose. What’s more, this products can meet the requirements of bundle cable and ribbon cable. Humanized design brings better user experience and safe operating environment for consumers.
Product Advantages
l Cable diameter: 4 ports apply to cable with a diameter of 8-16mm.
l Capacity: max capacity is up to 144f. each tray support 36f.
l Installation method: wall-mounted, pole mounted, manhole and direct burial mounted.
l Closure body is made of polymer modified materials, not only good sealing performance but also durable and user-friendly.
l Splicing slot is replaceable to meet the demands of ribbon cable. Max capacity is 768f.
Product Specifications
Construction | Description |
Capacity | Single fiber:144Cores |
Material | PP+GF |
Dimension (mm) | 324*Φ183 |
Inlets/Outlets | 2/2 |
Installation | Wall Mounting/ Pole Mounting/ Manhole |
Net Weight(g) | 1500 |
Protection Level | IP68 |
Diameter Of Fiber Cable | 4 round port : Φ8mm~16mm |
Sealing Mode | Mechanical Seal |
Splice Tray Capacity | Single fiber:36F |
Max No. Tray Installed | 4pc |
Structure Drawing
Standard Accessories(Picture Only For Refer)
Optional Accessory (Pictures For Reference Only)
Packing Information
Construction | Description |
Outside Dimension(L*M*H)mm | 350*180*160 |
Weight/PC(kgs) | 2.4 |
Carton size(L*W*H)mm | 365*375*510 |
Qty/CTN(pcs) | 6 |
Weight/CTN(kgs) | 15.2 |
Design And Customization Services
l Provide service with whole process form blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
