FCST012134
FCST
FCST012134
Product Overview
FCST012134 Fiber Optic Splice Closure is intended to meet the needs of anyone using fiber optic splice closures in the long haul, metro, local access (xDSL, HFC, wireless backhaul) and FTTx feeder/distribution networks. The unit requires no special tools, which helps reduce tooling costs and allows for ease of installation and re-entry into the closure. GPJ09-5607 can be used in a wide range of use environments, such as underground or aerial, pole, wall etc.
Product Advantages
l Robust, chemical resistant body, ribbed for additional mechanical strength.
l Highly efficient fiber management system with splice tray for single and ribbon fiber cables.
l The hinged splice tray allows easy access to fibers/splices without removing other trays.
l Integrated seal, air tight and water proof RoHS compliant.
l Applicable for multiple cables by changing grommets.
l Easy operation and good sealing performance.
l Protection grade: IP68.
Product Specifications
Construction | Description |
Capacity | Single fiber:144Cores Ribbon fiber:432Cores |
Material | PP+GF |
Dimension (mm) | 525*Φ225 |
Inlets/Outlets | 1/4 |
Installation | Aerial, wall, pole, underground, pipeline etc. |
Net Weight(g) | 4300 |
Protection Level | IP68 |
Diameter Of Fiber Cable | Oval port:Φ8-Φ18 mm Branch port:Φ8-Φ18 mm |
Sealing Mode | Mechanical Seal |
Splice Tray Capacity | Single fiber:32F Ribbon fiber:6F |
Max No. Tray Installed | 4pc |

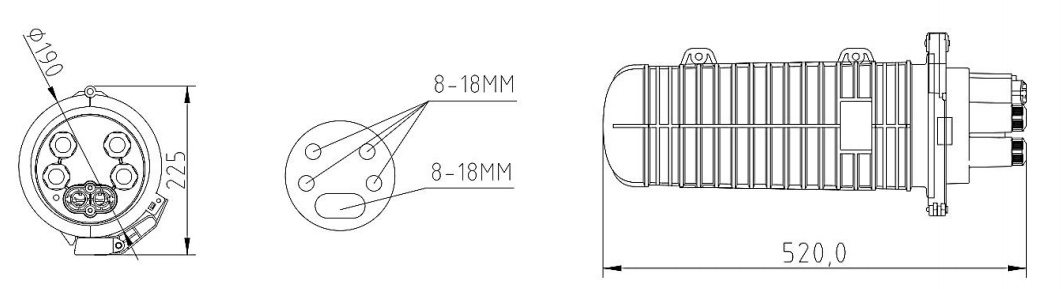

Structure Drawing

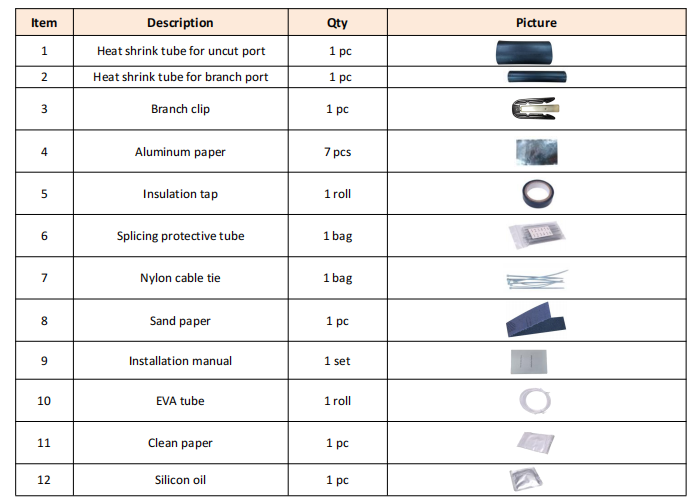

Standard Accessories(Picture Only For Refer)

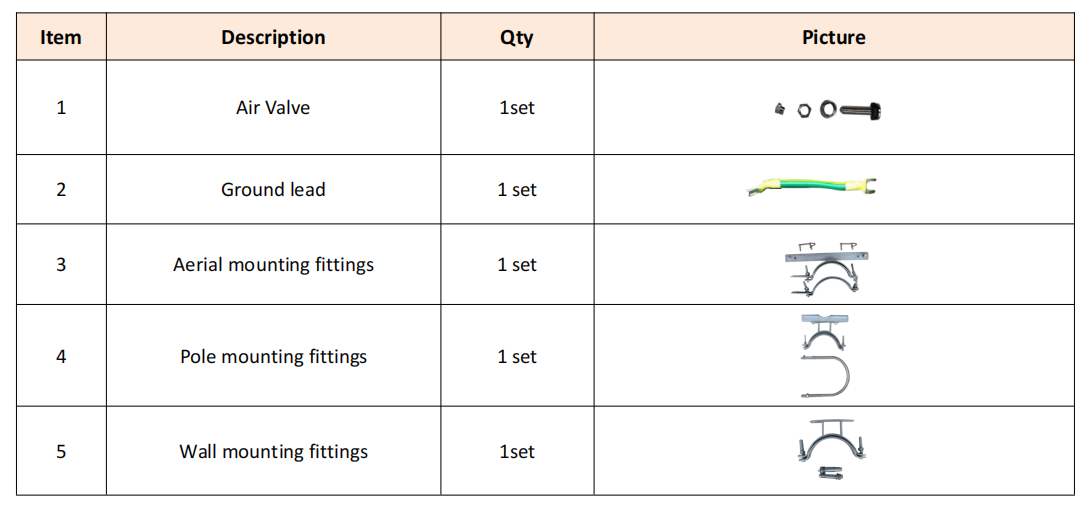

Optional Accessory(Picture Only For Refer)

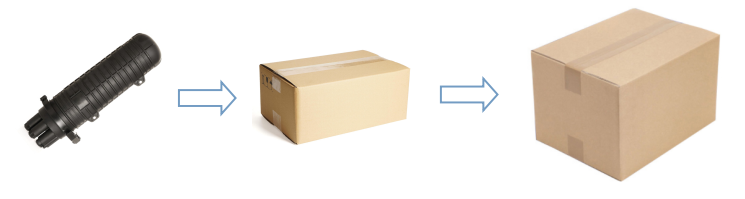

Packing Information
Construction | Description |
Outside Dimension(L*M*H)mm | 475*235*205 |
Weight/PC(kgs) | 5.1 |
Carton size(L*W*H)mm | 740*500*450 |
Qty/CTN(pcs) | 6 |
Weight/CTN(kgs) | 32.1 |
Design And Customization Services
l Provide service with whole process form blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
