FCST012107
FCST
FCST012107
Product Overview

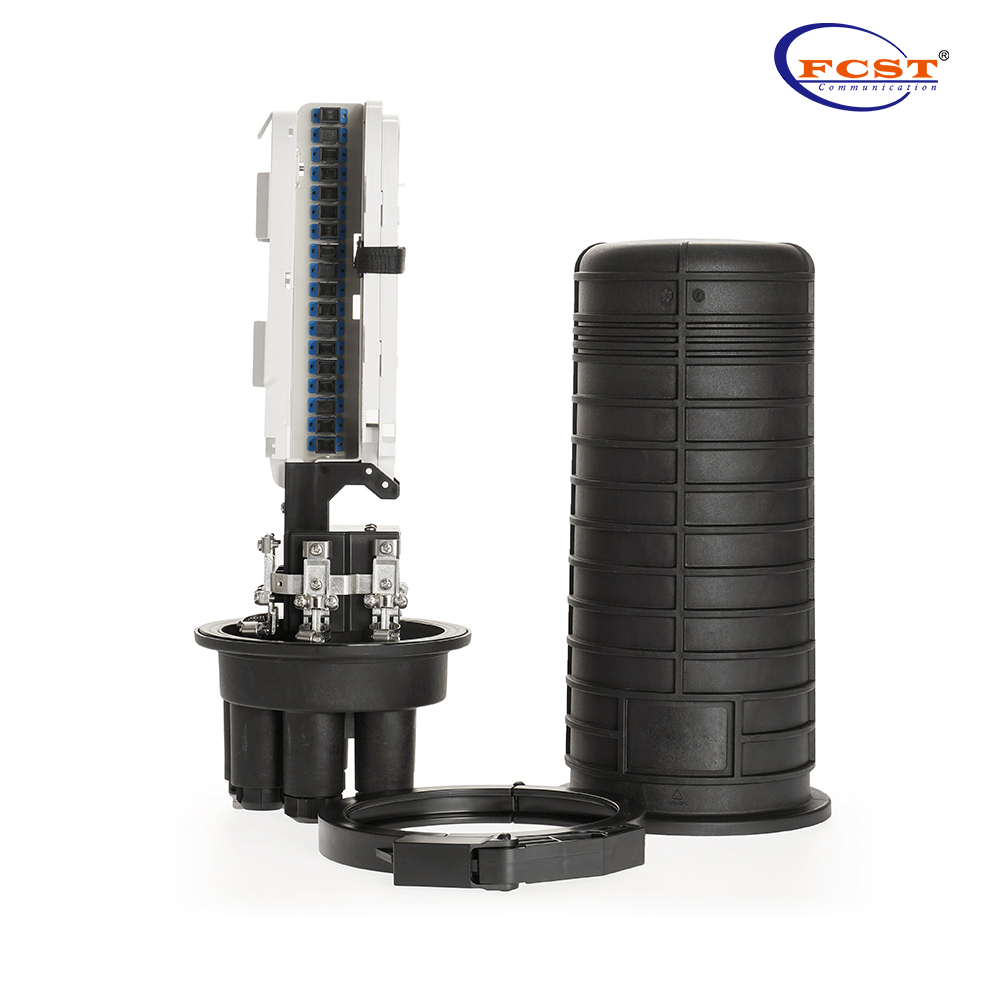

FCST012107 Fiber Optical Fiber Optical Closure is used for FTTH solution. It’s easy and fast to fix fiber cable. The protection level of connector box is IP68, which can be used in all kinds of environments.
Product Specifications
Construction | Description |
Capacity | 12/24/48Fibers |
Material | HDPP |
Dimension(mm) | 450×φ230 |
Inlets/Outlets | 1/4 |
Installation | Pole-mounting/Wall-mounted |
Optional Accessories | Pigtail，Adapter,Splitter |
Protection Level | IP68 |
Sealing Type | Mechanical |
Suitable Cable Diameter(mm) | Φ8~18 |
Net Weight（g） | 4500 |
Packing | 6pcs/cnt 29.7kg 740×490×450mm |
Product Advantages
l 5 ports used for Φ 8 to 18 mm cable, 1 uncut ports and 4 branch ports.
l Splitter can be installed 1:8, 1:16 or 2:16, and maximum 18 SC adapters can be assembled.
l Installation method: pole-mounting, wall-mounting, manhole.
l There are two capacities to choose, 12cores，24 cores and 48 cores.
l Protection grade: IP68
Product Structure
Ordering Information
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
