FCST012106
FCST
FCST012106
Product Overview

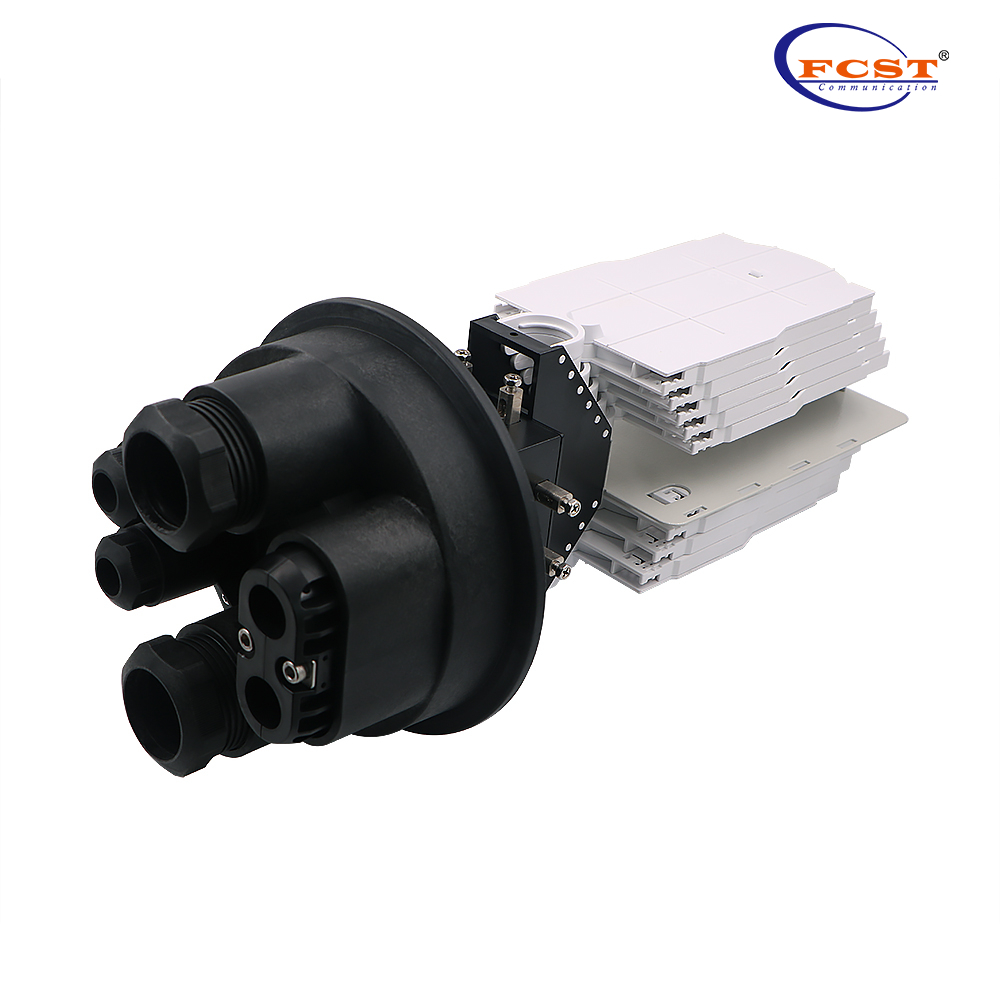

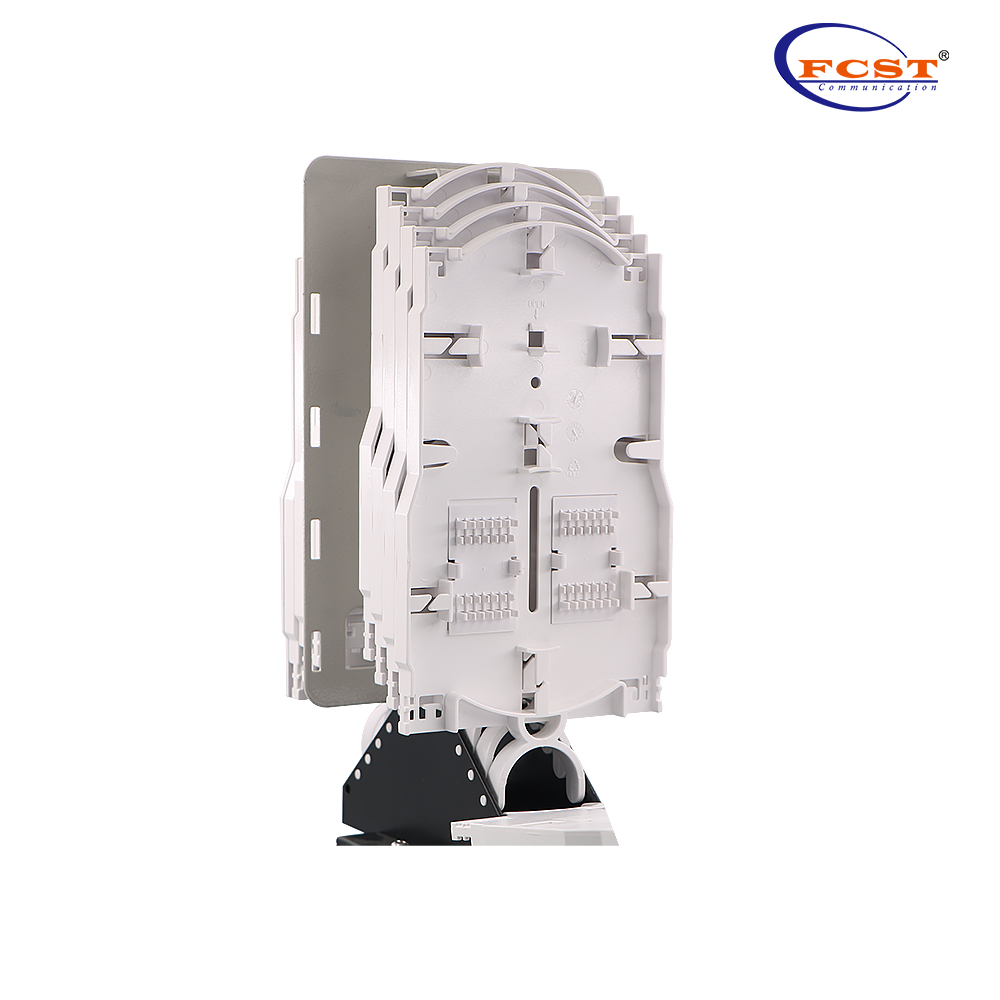

FCST012106 fiber optic splice closure which supports optical cable link and branch. The unique mechanical sealing design owns national patent and a perfect sealing. It's suitable for wall-mounting, aerial, pole-mounting and grounding buried.
Product Specifications
Construction | Description |
Max. Capacity | Single:240Cores Ribbon:720/960Cores |
Material | PP+GF |
Dimension (mm) | 480*Φ260 |
Inlets/Outlets | 1/4 |
Installation | Pole/Aerial/Manhole |
Net Weight(g) | 4500 |
Protection Level | IP68 |
Diameter Of Fiber Cable | Oval port: 1(Φ8~22mm) Two big round port(2 pieces Φ6~14mm cable) Two small round port(Φ8~18mm) |
Sealing Mode | Mechanical |
Number Of Trays | 10 |
Capacity Of Tray | Single:24F Ribbon:6F/8F |
Packing Information
Construction | Description |
Outside Dimension(L*W*H)mm | - |
Weight/PC(kgs) | - |
Carton size(L*W*H)mm | 570*500*540 |
Qty/CTN(pcs) | 4 |
Weight/CTN(kgs) | 22.1 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
