NF-1609
FCST
NF-1609
Product Overview

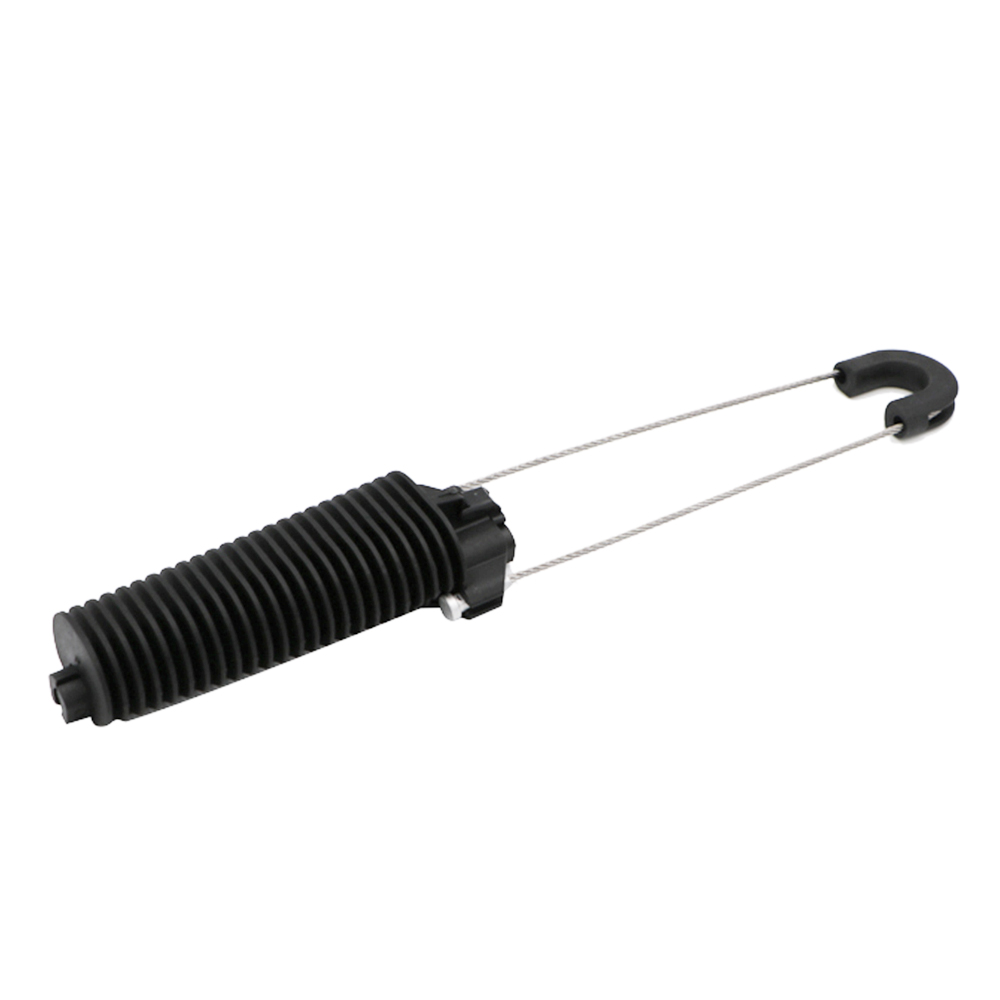

NF-1609 PA Wedge Clamp composed of an opened thermoplastic body with very high mechanical and climatic resistance, an inner sheath consisting one or two insulating plastic wedges ensuring the clamping of the neutral messenger without damaging cable insulation.Two stainless bail ends are compressed on it to lock into clamp. Simple assembling because the wedges open by pulling them back. The flexible steel loop can be fixed into a closed eye bracket.
Product Specifications
Construction | Description |
Product Name | NF-1609 PA Wedge Clamp |
Cable Type | Figure 8 Nonmetal Lightning Protection Optical Cable |
Cable Diameter | 3-5mm/5-8mm/8-12 mm/10-12mm/12-14mm |
Material | Wedge groove：PA66 + 50% fiberglass Steel cable：SUS304 material 7*7 strand twisted steel wire rope |
Dimension (mm) | 370*64*35 |
Max Span（m） | 150 |
Stretching Resistance（N） | 4000 |
Salt Spray Test(h) | 1000 |
Weight（g） | 170 |
Product Application

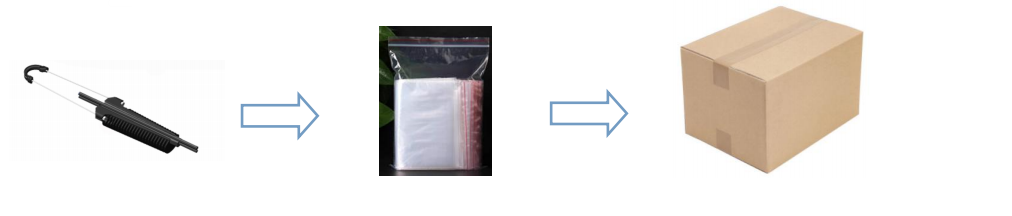

Packing Information
Construction | Description |
Outside Dimension（L*M*H）mm | - |
Weight/PC（kgs） | - |
Carton size（L*W*H）mm | 495*245*220 |
Qty/CTN（pcs） | 60 |
Weight/CTN（kgs） | 13.4 |
Wedge groove is made of PA66 + 50% fiberglass, with a maximum tensile strength of 4000N.

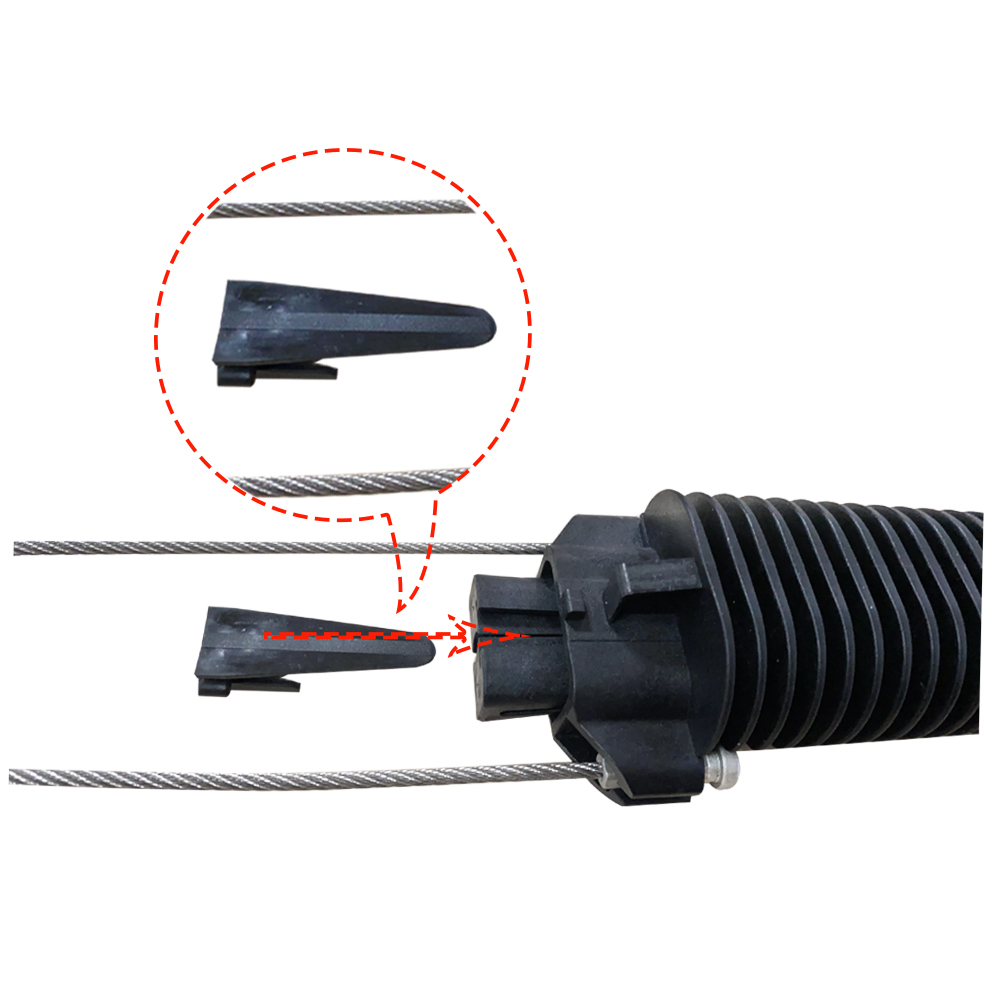

Design a Limit slider on top of Wedge groove. Prevent the clamping slider from falling off when moving up and down.

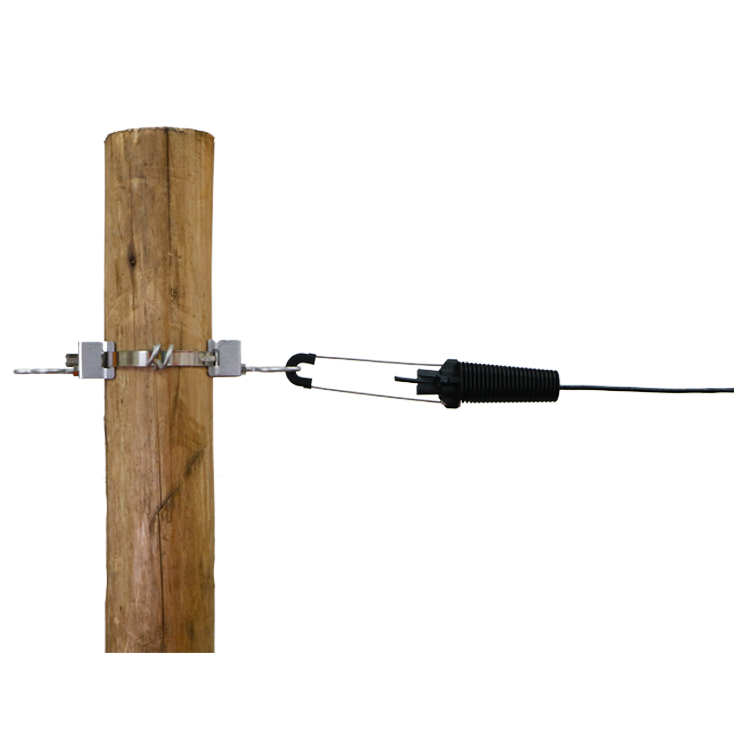

NF-1609 PA Wedge Clamp is used for figure-of-eight non-metal lightning protection optical cable. Set up as an anchor point on the communication tower. Used with steel belt hoop.
