  • 4.3 inch LCD color display.
  • Average splice loss 0.01dB.
  • 6S fast splicing, 16S fast heating.
  • 5000 times electrode service life.
  • FOBshanghai Price:from 807USD/pcs


État de disponibilité:

Product Overview

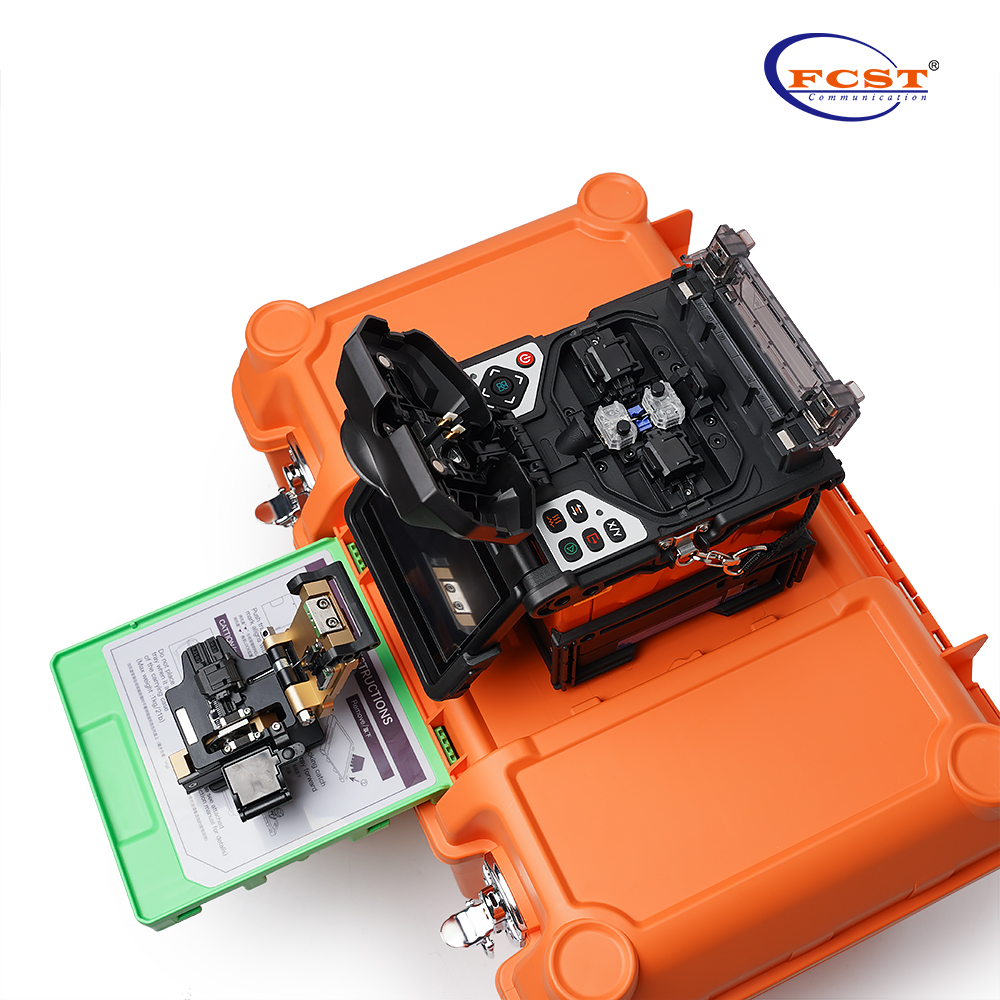

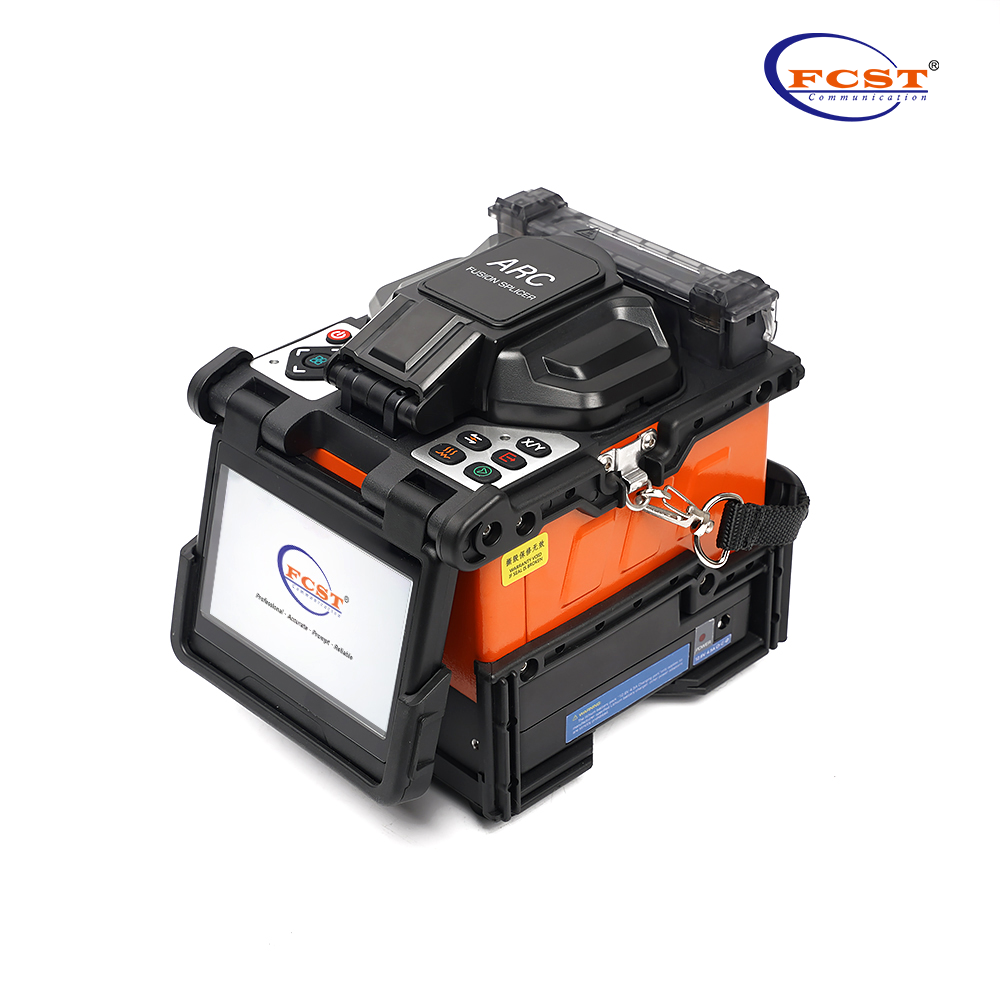

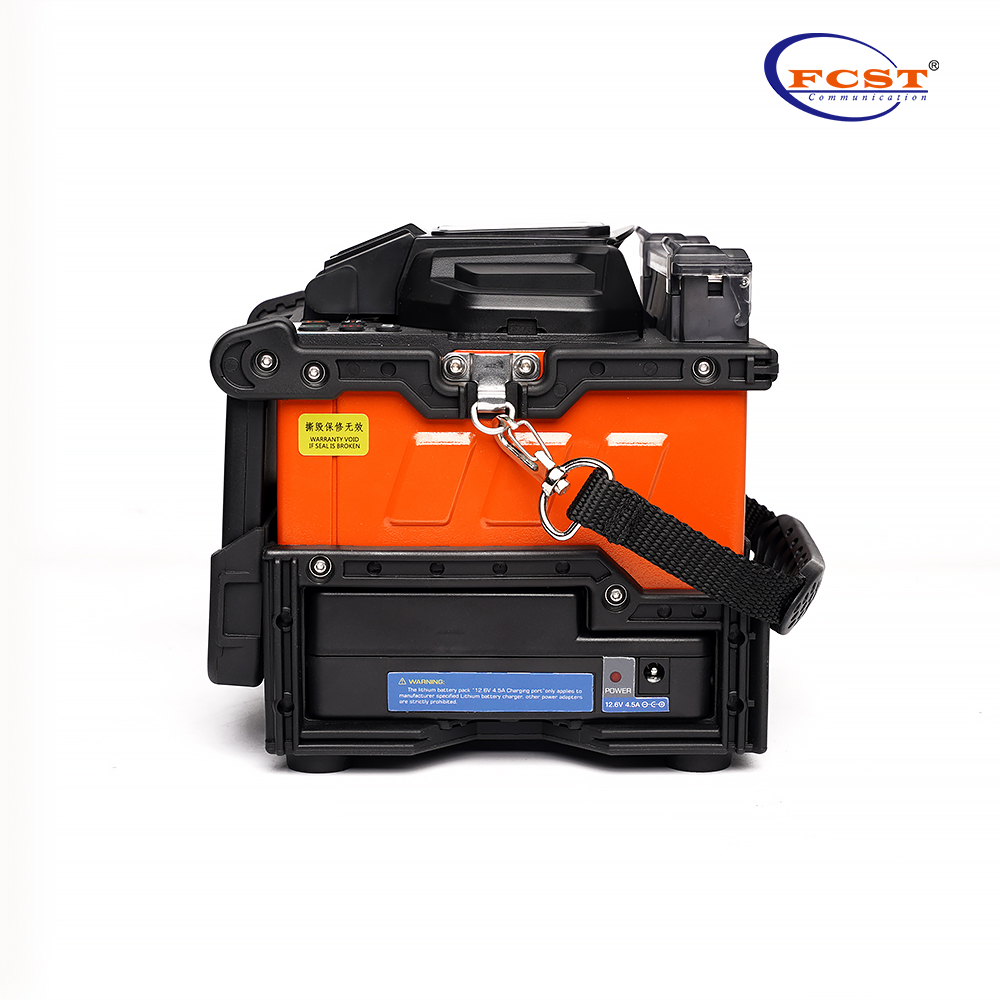

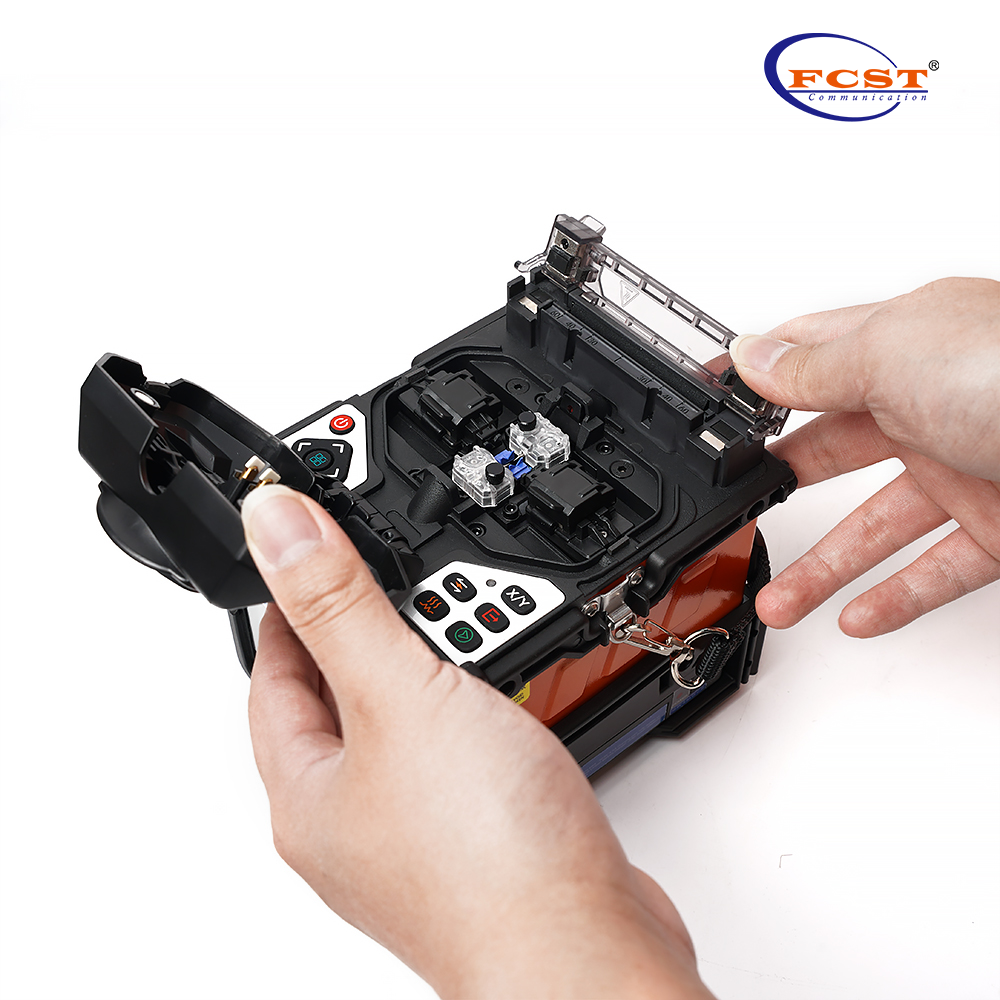

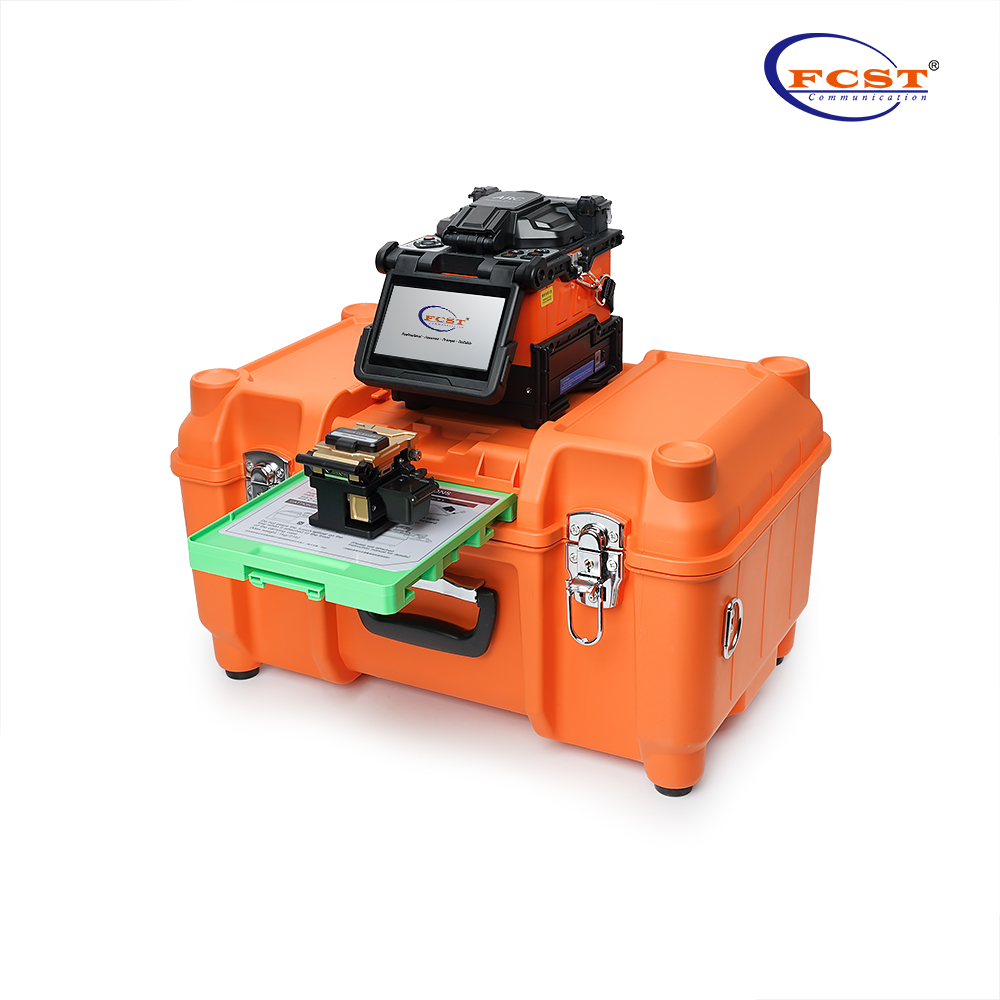

FFS-88S Optical Fiber Fusion Splicer is mainly used in the backbone network, with exquisite appearance and reliable quality. The fusion splicer is a precision, durable and convenient optical fiber construction instrument specially designed for the installation, operation and maintenance of optical fibers. Widely used in the construction, testing and maintenance of optical cables.

Product Advantages

4.3 inch LCD color display.

Average splice loss 0.01dB.

5000 times electrode service life.

6S fast splicing, 16S fast heating.

Small size, easy to carry and transport.

7800mAh battery, 400 cycles of splicing and heating.

Real-time discharge correction, stable splicing accuracy.

Can store 10000 sets of splicing results and 2000 sets of images.

USB interface, convenient for data download and software update.

Silicone protective cover, can effectively waterproof, anti-fall, anti-vibration.

Product Specifications



Alignment Method

Core to core alignment

Applicable Fiber Type

SM(ITU-T G.652&G.657) / MM(ITU-T G.651) / DS(ITU-T G.653) / NZDS(ITU-T G.655)

Fiber Type

Replaceable universal fixture, SOC fixture (optional)

Fiber Diameter

Cladding diameter: 80-150μmCoating diameter100~1000μm

Cutting Length

8~16 mm

Splicing Mode

Maximum 128 groups

Splicing Loss

SM: 0.02dB / MM: 0.01dB / DS: 0.04dB / NZDS: 0.04dB / G.657: 0.02dB ★①

Return Loss


Splicing Time

6 seconds(SM G652 QUICK mode)

Loss Estimation


Heating Time

16 Seconds(SM G652 250um 40mm heat shrink tube,based on quick mode) User adjustable

Applicable Heat Shrinkable Length

20mm, 30mm, 40mm, 50mm, 60mm

Heating Mode

Maximum 32 groups

Battery Capacity

7800mAh lithium batteryeach cycle supports 400 times splicing and heating ★②

Electrode Life

About 5000 times discharges ★③

Automatic Discharge Calibration

Automatically calibrate according to ambient temperature and air pressure changes

Result Storage

10000 sets of splice data, or 2000 sets of splice images

Tension Testing


Operating Conditions

Altitude:0~5000meters,Relative humidity:0~95%,-20~50 ,Maximum wind speed:15meter/second

Storage Condition

Relative humidity 0~95% , -20~60°C temperature

Display Ccreen

4.3 inches, high-definition LCD display

Zoom In and Display

X, Y, XY, X/Y : 320 times magnification


1.72kg without battery / 2.25kg with battery

Dimension (H*W*D)

158*132*157 mm (including rubber bumper)


USB 2.0

★① Use standard optical fiber, according to the ITU-T and IEC standard cut method to test the results, the loss will change due to the environment and the characteristics of the optical fiber.

★② The results measured in room temperature environment are largely affected by the battery usage status and operating environment.

★③The life of the electrode will change due to the environment, fiber type and splicing mode.

Product Advantages

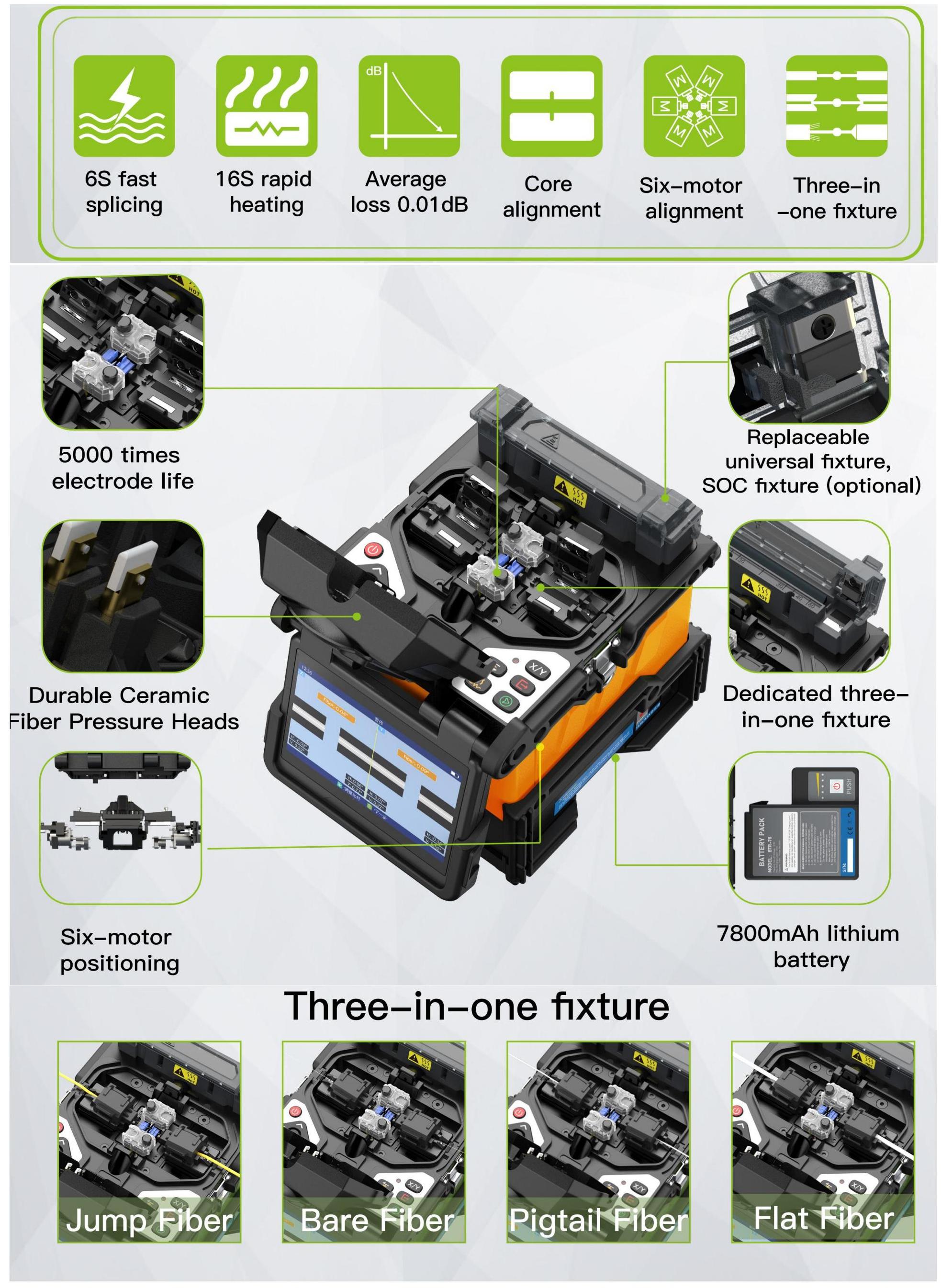

FFS-88S (15)

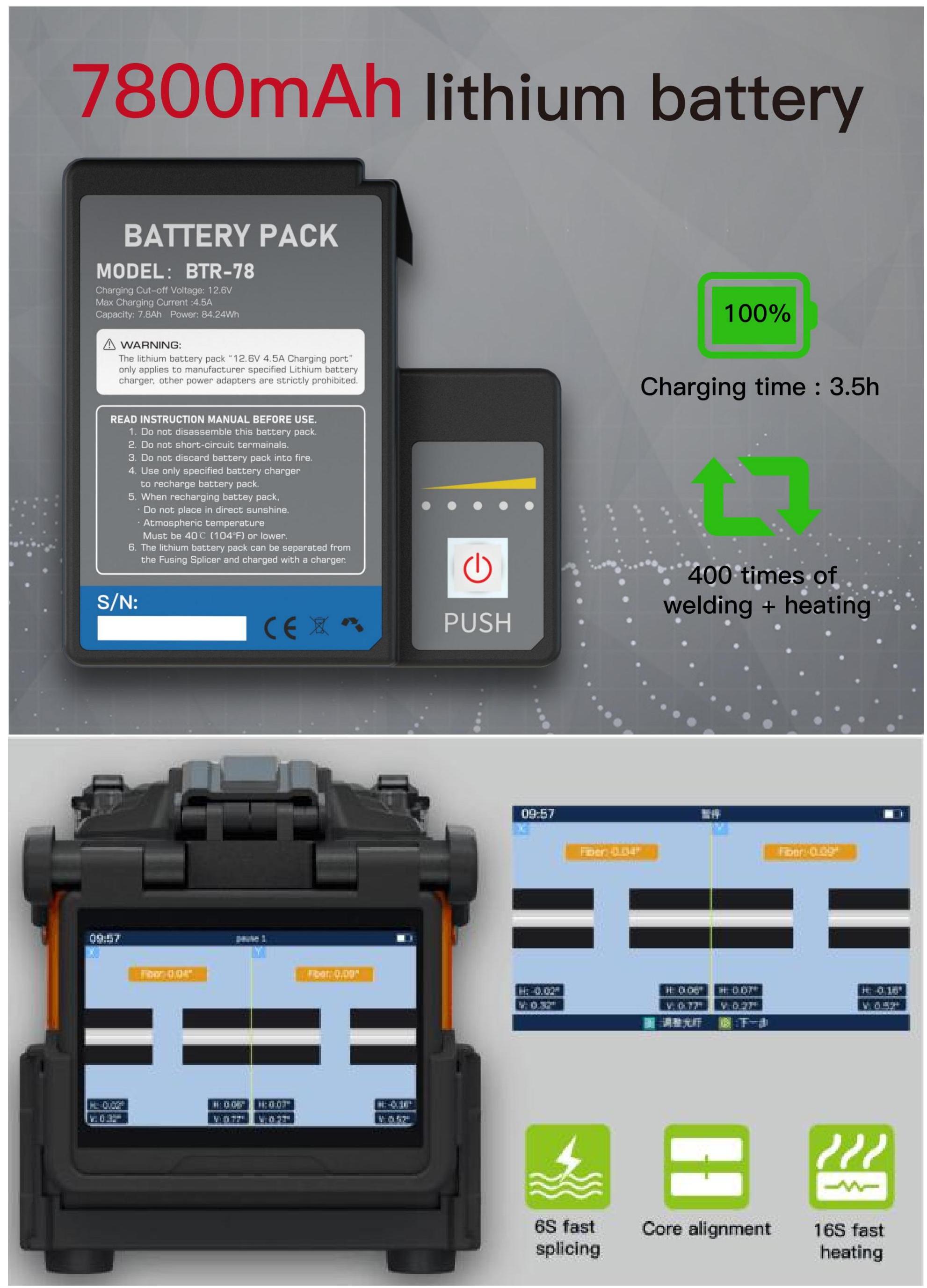

FFS-88S (13)

Product Application

FFS-88S (16)

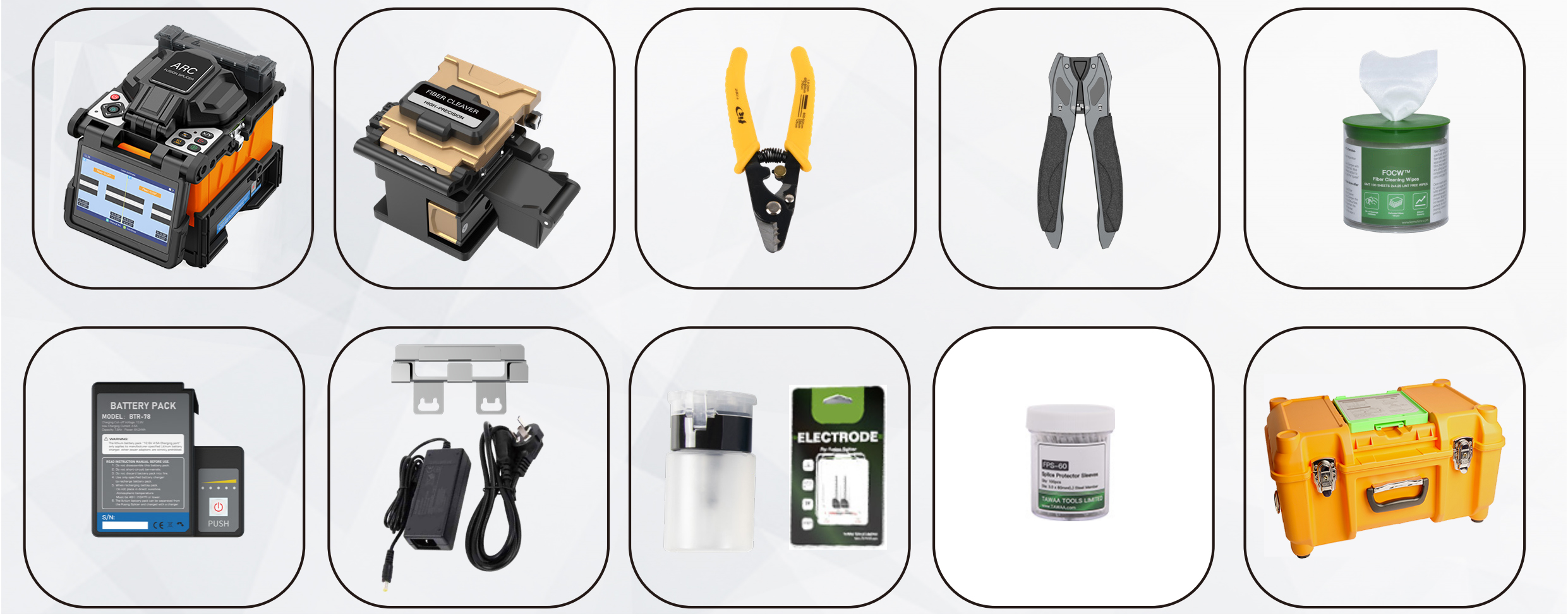

FFS-88S (6)

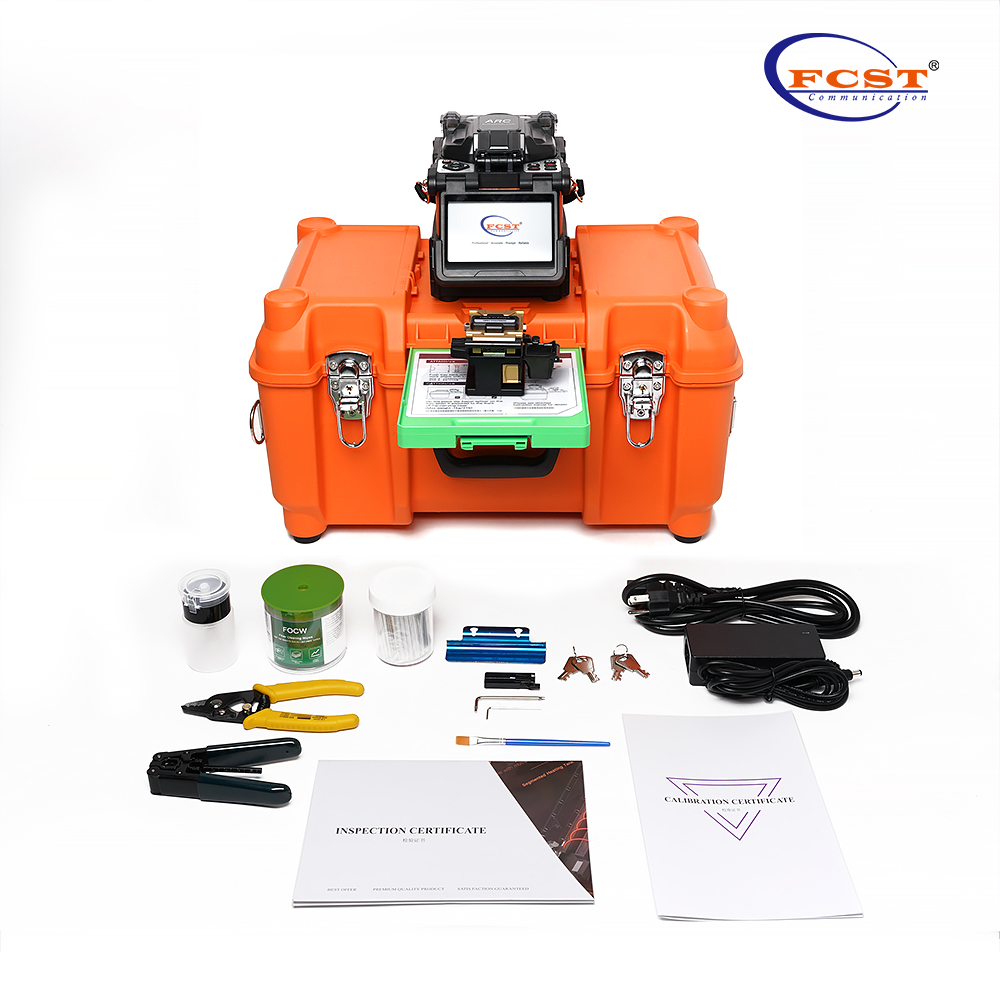

Optional Accessories

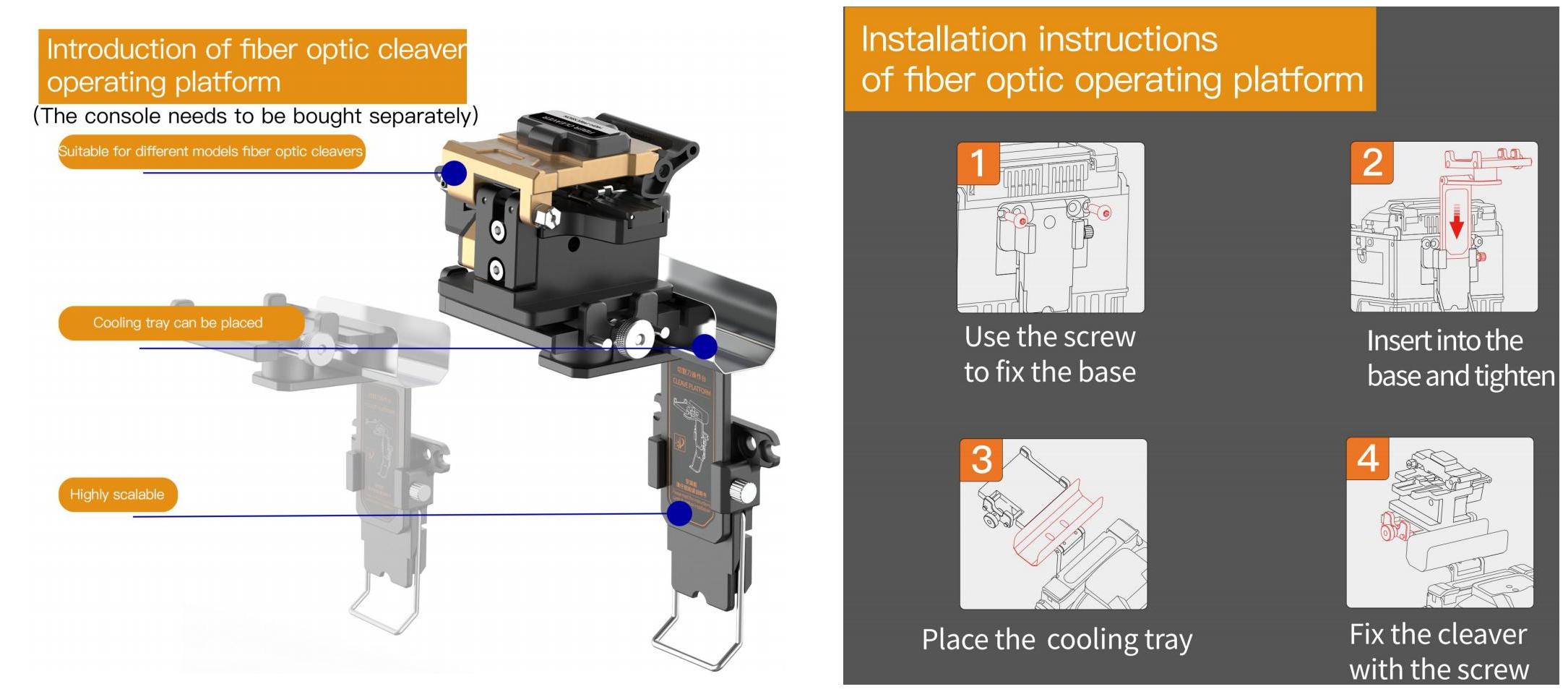

FFS-88S (14)
