FCST03516
FCST
FCST03516
Product Overview

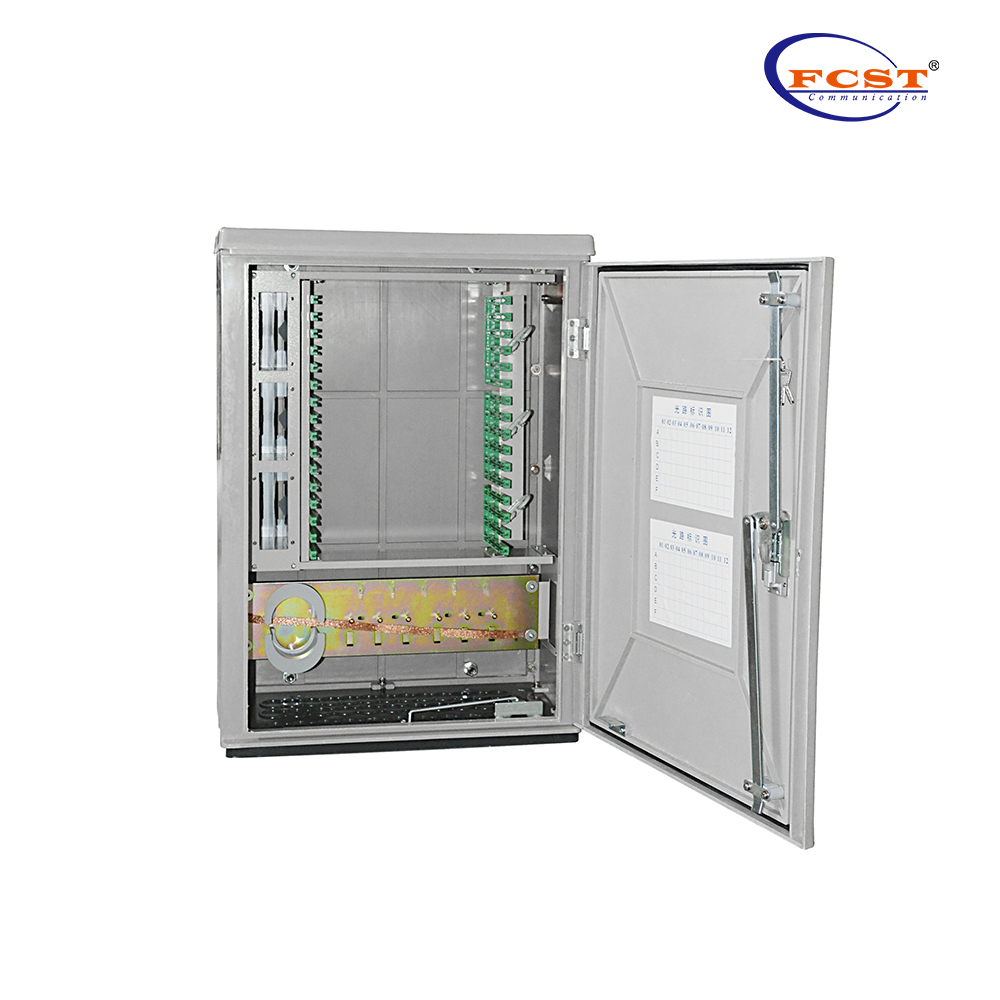

FCST03516 Optical Distribution Cabinet is used as outdoors trunk interface device connecting to the cable and distribution cable, and can provide the connection between backbone cables and wiring cable. It can achieve a direct connection and cross-connect between the trunk cable and wiring cable with the function of cable fixing, the connection of metal components and high-voltage protection grounding devices, the protection of optical fiber connector, savings and distribution of the remaining long fiber.
Product Advantages
l High intensity and anti-erosion performance.
l Able to counter abrupt climate change and extreme environment.
l Installation is quick and convenient.
l Built-in direct splice unit is capable for providing direct connection function.
l Perfect design of fiber wiring routing could facilitate management and maintenance of fibers.
l With secure and reliable fastening and grounding protection devices for the optic fiber.
Product Specifications
Construction | Description |
Number Of Cores | 48~144Fibers |
Material | SMC |
Dimension (mm) | 770*540*300 |
Protection Level | IP65 |
Optional Accessories | Pigtail，Adapter |
External Temperature | -40℃~+60℃ |
Environmental Temperature | -30℃~+55℃ |
Working Environment Temperature Of Equipment | +18℃~+35℃ |
Environment Humidity | ≤95% |
Atmospheric Pressure In +30℃ | 70~106kpa |
Product Application
l Widely used in FTTH (Fiber To the Home) access network.
l Telecommunication Networks.
l CATV Networks.
l Data communications Networks.
l Local Area Networks.
