FCST012204
FCST
FCST012204
Product Overview

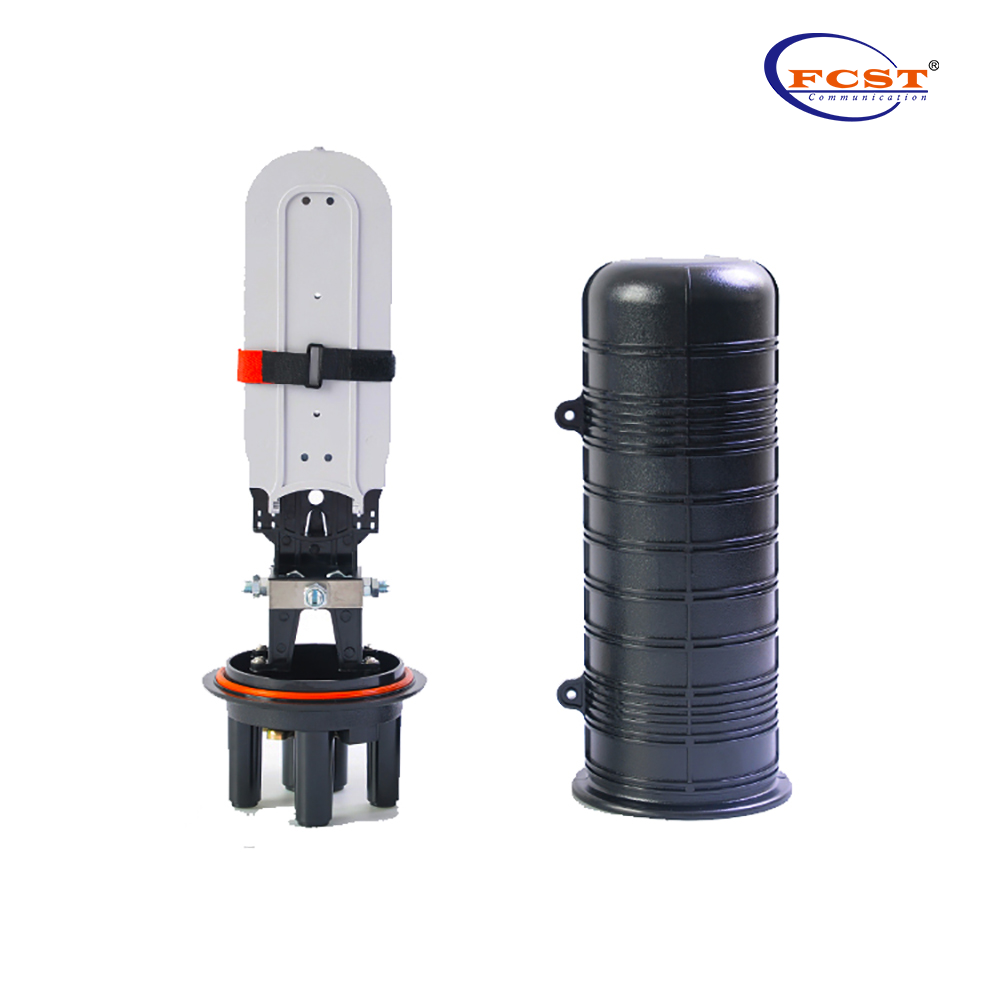

FCST012204 Fiber Optic Splice Closure provides space and protection for the fiber optic cable splicing and joint.Fiber optic closure belongs to the accommodation of the optical fiber fusion splice section system. It is widely applied to the connection of the fiber play the roles in sealing, protection, installation of fiber connector head and storage.
Product Specifications
Construction | Description |
Max. Capacity | Single:96Cores Ribbon:144Cores |
Material | PP+GF |
Dimension (mm) | 410*Ф190 |
Inlets/Outlets | 5 |
Installation | Pole mounting,Pedestal mounting Strand mounting,Wall-mounting |
Net Weight(g) | 3200 |
Protection Level | IP68 |
Diameter Of Fiber Cable | Ф8mm~Ф25mm |
Sealing Mode | Heat Shrinkseal |
Number Of Trays | 5 |
Capacity Of Tray | 24F |
Packing Information
Construction | Description |
Outside Dimension(L*W*H)mm | 200*170*425 |
Weight/PC(kgs) | 3.2 |
Carton size(L*W*H)mm | 880*420*445 |
Qty/CTN(pcs) | 10 |
Weight/CTN(kgs) | 33.8 |
Design And Customization Services
l Provide service with whole process from blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
