FCST012129
FCST
FCST012129
Product Overview

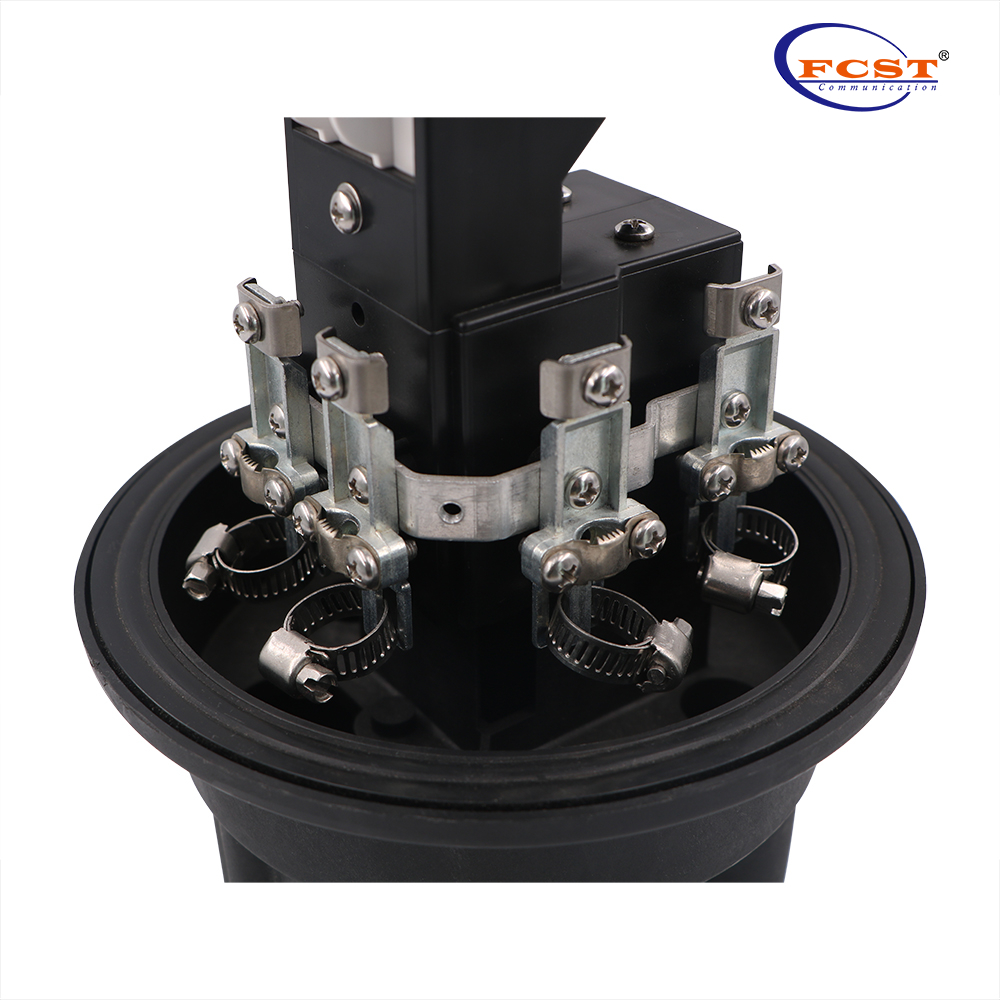

FCST012129 Fiber Optic Splice Closure provides protection over direct connection, branch and continual connection for cables. The original mechanical sealing which has been tested reliable has won the national patent. It is applicable to many installations: pole-mounting, aerial, wall-mounting, and ground-burial.
Product Advantages
l 5 ports used for Φ 8 to 18 mm cable, 1 uncut ports and 4 branch ports.
l Splitter can be installed 1:8, 1:16 or 2:16, and maximum 18 SC adapters can be assembled.
l Installation method: pole-mounting, wall-mounting, manhole.
l There are two capacities to choose, 12cores,24 cores and 48 cores.
l Protection grade: IP68
Product Specifications
Construction | Description |
Capacity | 48Fibers |
Material | HDPP |
Dimension(mm) | 450×φ230 |
Inlets/Outlets | 1/4 |
Installation | Pole-mounting/Wall-mounted |
Optional Accessories | Pigtail,Adapter,Splitter |
Protection Level | IP68 |
Sealing Type | Mechanical |
Suitable Cable Diameter(mm) | Φ8~18 |
Net Weight(g) | 4200 |
Max Number Of Trays | 2 |
Environmental Temperature | -40℃~+65℃ |
Voltage Resistance Strength | 15KVDC/1min,no puncture, no arc-over |
Packing Information
Construction | Description |
Outside Dimension(L*M*H)mm | 450*240*248 |
Weight/PC(kgs) | 4.75 |
Carton size(L*W*H)mm | 740*490*450 |
Qty/CTN(pcs) | 6 |
Weight/CTN(kgs) | 29.7 |
Design And Customization Services
l Provide service with whole process form blueprint to product to the customer.
l Meet customer’s requirement to customize logo in suitable place for existing product.
l Meet customer’s requirement to make reasonable modify and customization for existing product.
l Provide free design according to the requirement of customer after signed cooperative agreement.
