Coupleur LCUPC avec support
FCST

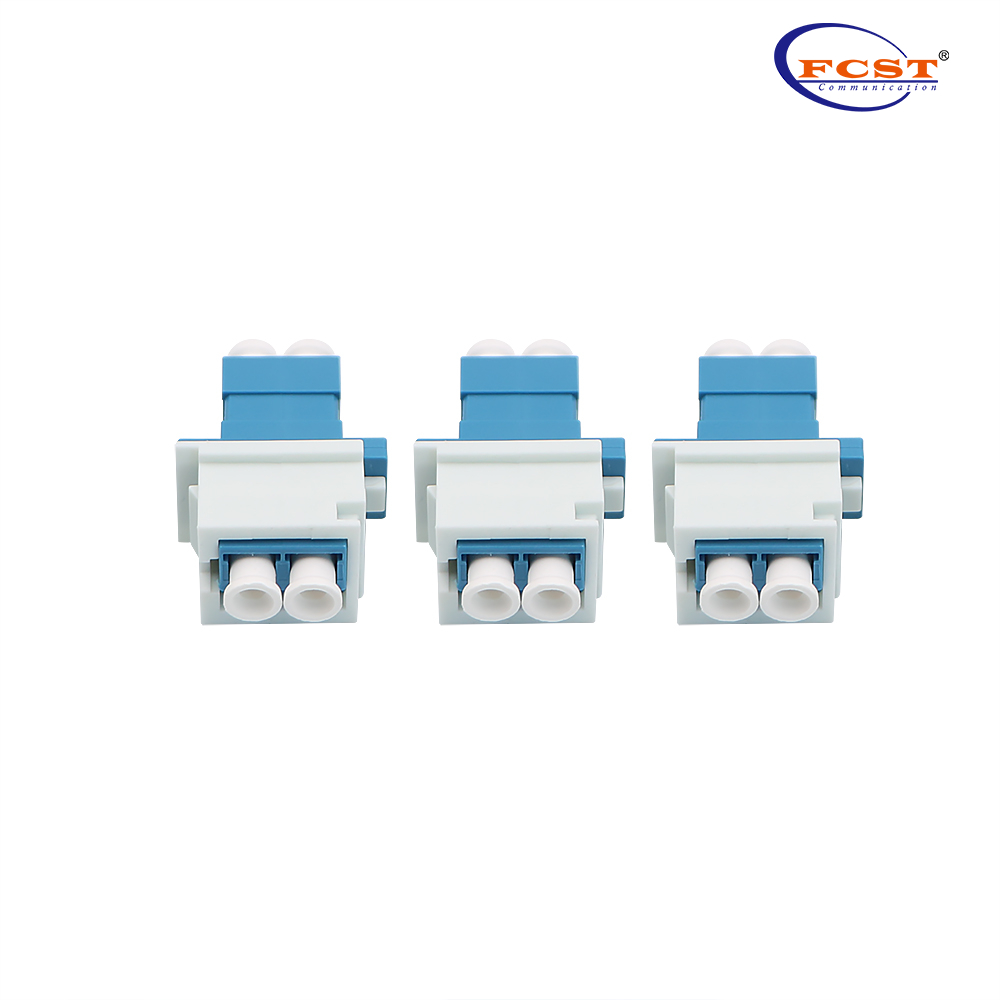

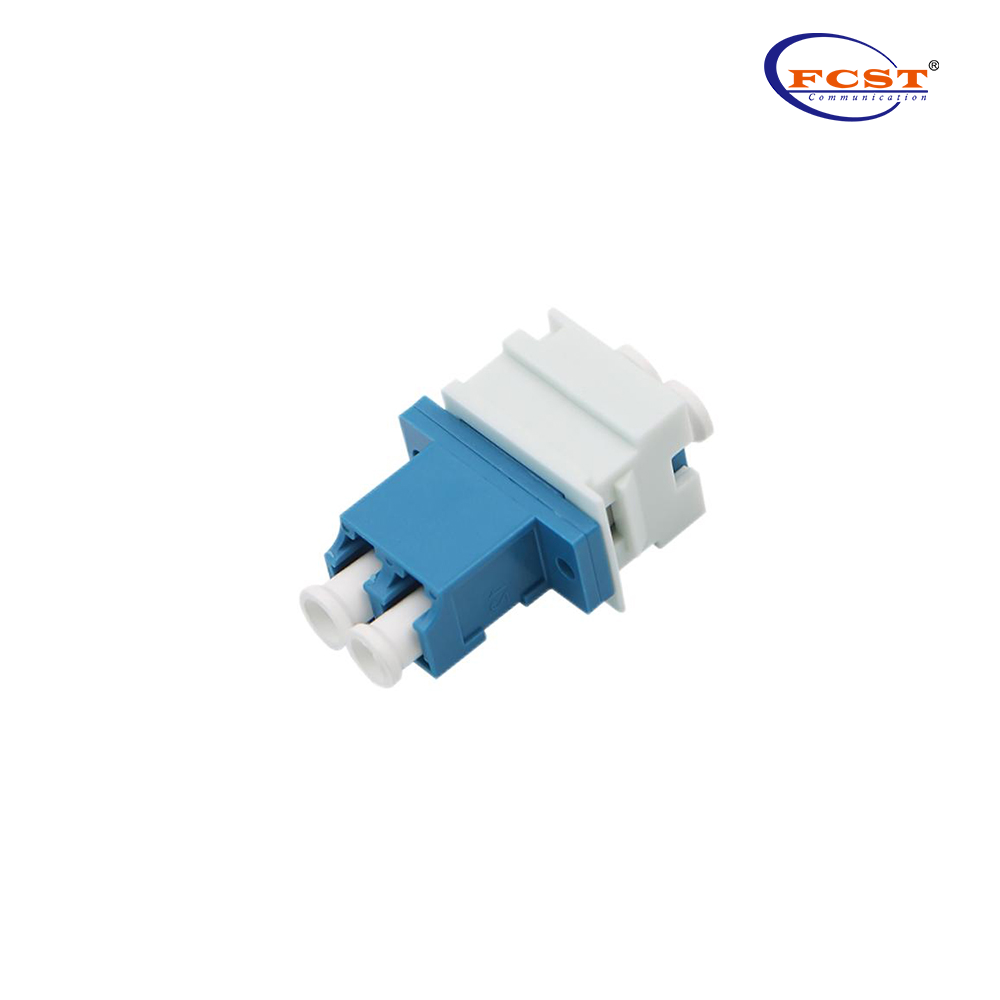

LCUPC Coupler with Holder
Product Overview
Fiber optic adapter, sometimes also called coupler, is a small device designed to terminate or link the fiber optic cables or fiber optic connectors between two fiber optic lines.
By linking two connectors precisely, fiber optic adapters allow the light sources to be transmitted at most and lower the loss as much as possible. At the same time, fiber optic adapters have the merits of low insertion loss, good interchangeability and reproducibility. FCST supplies a wide range of mating sleeves and hybrid adapters, including special male to female hybrid fiber optic adapter.
Product Advantages
l Good Protection with Dust Cap.
l Simply Connecting Two Fiber Optic Cables.
l High-precision Ceramic Sleeve.
l Elaborately Designed Package.
Product Application
l CATV.
l Telecommunication Networks.
l Test Equipment.
l Metro.
l Local Area Networks.
Product Specifications
Construction | Description | Construction | Description |
Connector Type | SC-SC/LC-LC(Can be customized according to customer needs.) | Body Style | Simplex/Duplex/Quad |
Polish Type | APC/PC | Fiber Mode | SM/MM |
Insertion Loss | ≤0.2dB | Durability | 1000 times |
Mounting Type | Full flanged | Alignment Sleeve Material | Ceramic |
Color | Blue/Green/Violet/Aqua/Grey/Purple | Flammability Rate | UL94-V0 |
Package Quantity | SC:50pcs | RoHS Compliancy Status | Compliant |
