Product Overview

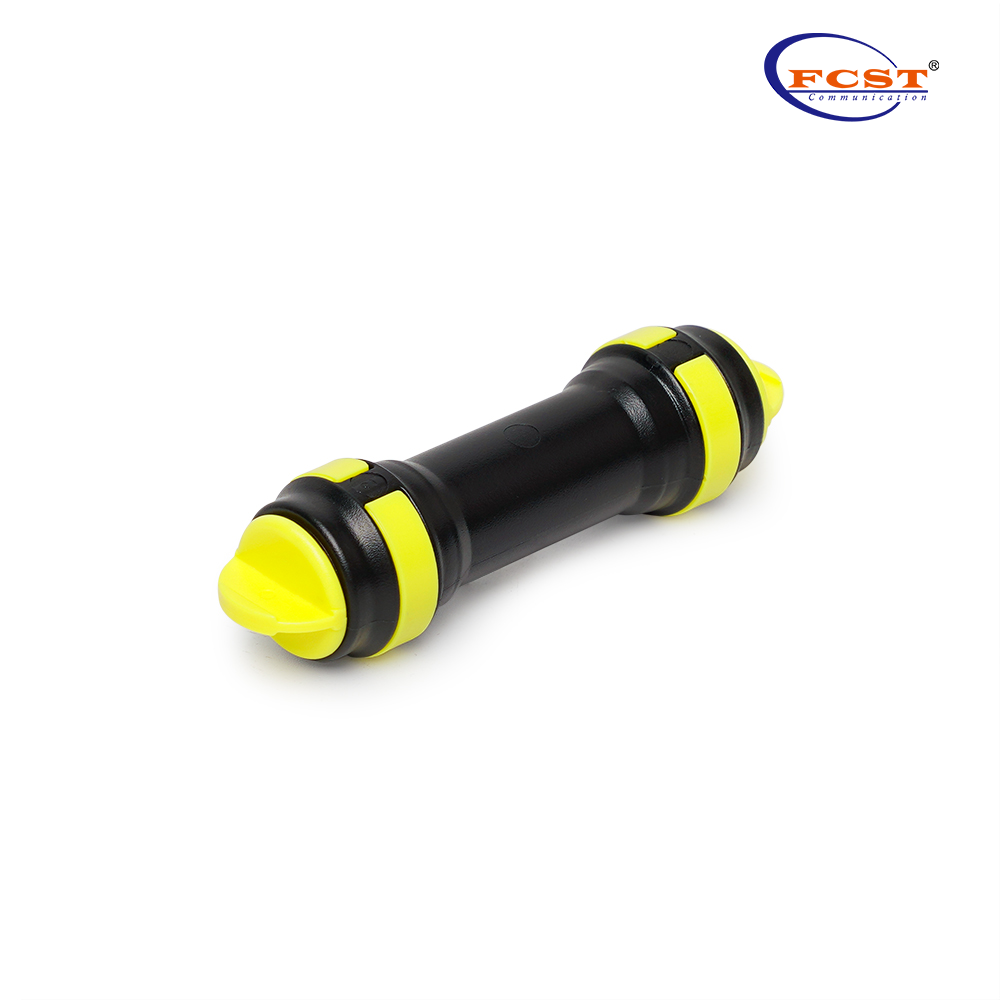

These connectors were developed to connect microducts with each other.Our system enables an easy, fast connection and disconnection of the microduct. The connectors’ robust construction resistance to high pressure forces,allowing them to be used in direct buried (DB) applications.
Product Advantages
l Standard EN50411-2-8.
l High pressure resistance>25bar.
l High temperature resistance -40~65℃.
l Designed to connect thick-walled microducts in a direct buried environments.
l Permanent connection that cannot be unlocked after installation Easy to use,robust,and high mechanical resistance.
Product Specifications
Construction | Description |
Tube To Connector | Polyethylene HDPE |
Fluid | Air with blowing system |
Working Pressure | 20 bar |
MAX. Pressure | 25 bar |
Userful Life | 25 years |
Working Temperature | -40℃/+65℃ |
According To Standards | EN50411-2-8 |
Tube Assembly | No tooling required |
Outdoor Exposure Limit @Cetral Europe | 12 months |
Product Size
NO. | Duct OD(mm) | PCS/bag |
FDS-B7/3.5 | 7/3.5 | 10 |
FDS-B8/3.5 | 8/3.5 | 10 |
FDS-B10/6 | 10/6 | 10 |
FDS-B12/8 | 12/8 | 10 |
FDS-B14/10 | 14/10 | 10 |
